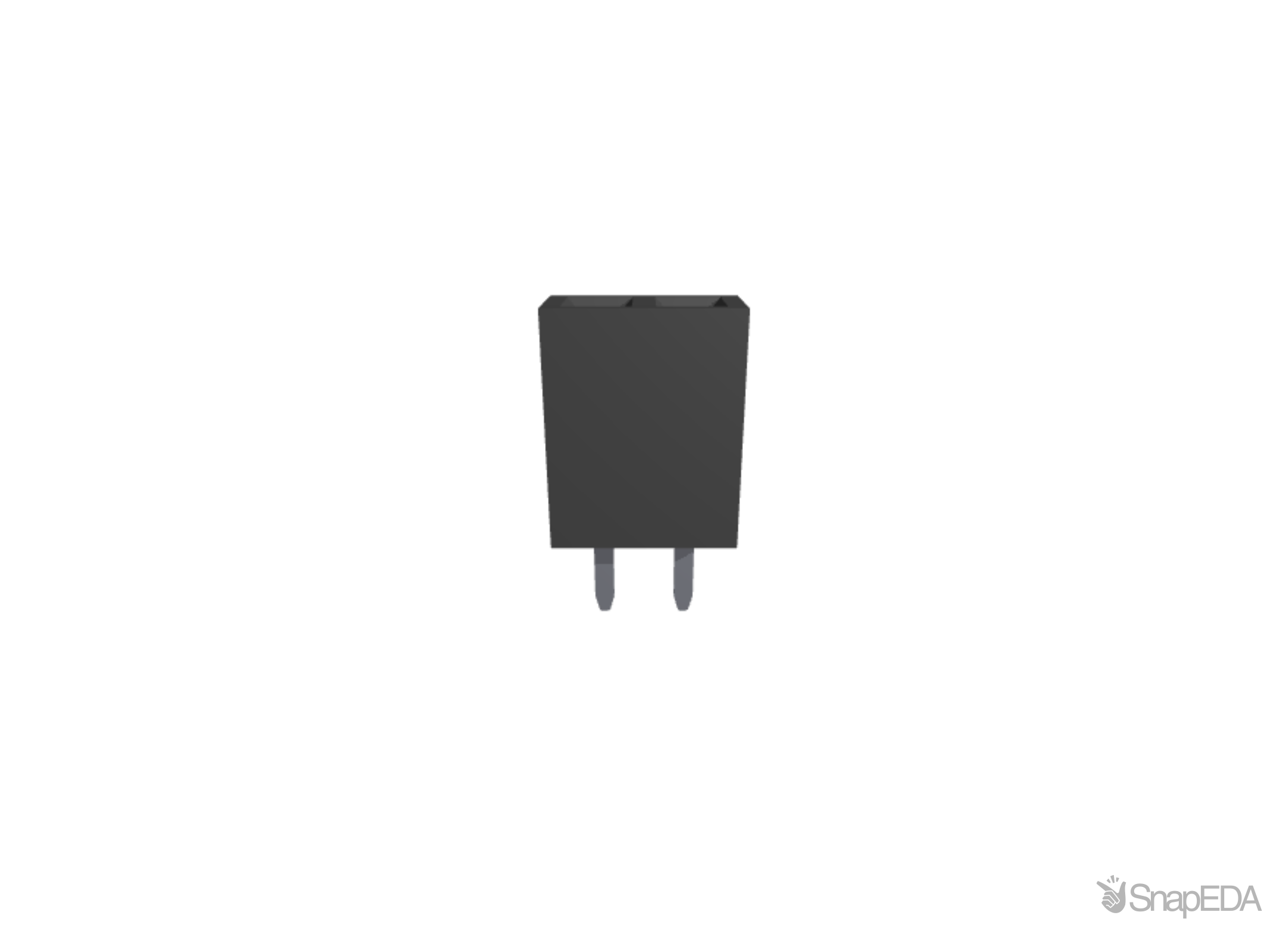

Dubox®, Board to Board connector, PCB Mounted Receptacle, Vertical, Through Hole, Top Entry, Single Row, 2 positions, 2.54mm (0.100in) Pitch
Specifications for the 68685-202LF
|Manufacturer||Amphenol ICC (FCI)|
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
