691243310008

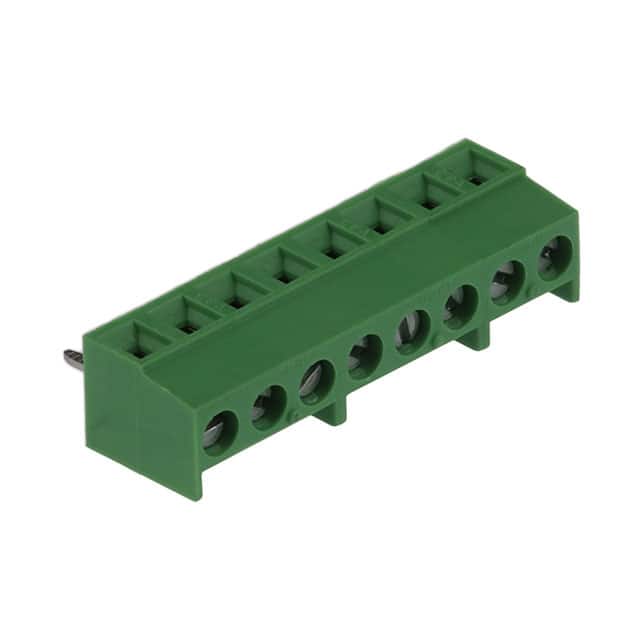

8 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 691243310008 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 691243310008
| Part Name | 691243310008 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | Serie 2433- 3.81mm Horizontal Entry Modular w. Rising Cage Clamp |
| Division | Electromechanics |
| Article Description Long | CPA3.81/8VE Serie 2433 - 3,81mm pitch - Monoblock THT - Green - Horizontal cable entry Rising Cage Clamp 9.1mm height - 08p |
| Product Family | Terminal Blocks |
| Contact Resistance | 0.02 |
| Rated Current (A) | 10 |
| Spq | 200 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | Carton |
| Height | |
| Width | |
| Length | 30.48 mm |
| Product Unit | eiCan |
| Operating Temperature | -30 °C up to +120 °C |
| Product Group Description | Connectors |
| Life Cycle Status | Active |
| Weight | 4.2100000381 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
