699062-000
TXR40SJ00-1408BI
Availability: Out of Stock
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the 699062-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

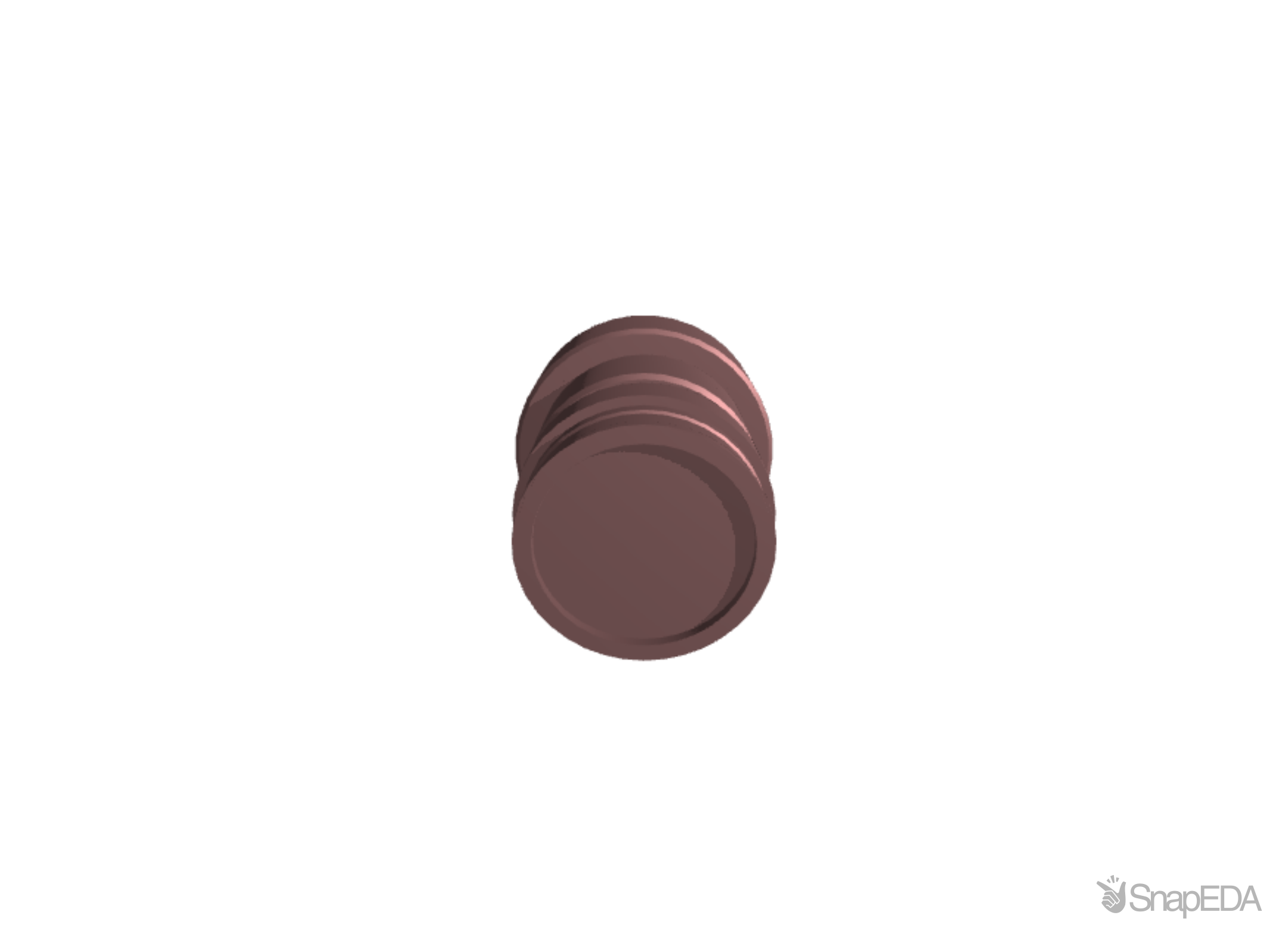

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 24 hours!
More
Relevant part with 2D models
| Verification | Issues | Specs | Pricing |
Specifications for the 699062-000
| Part Name | 699062-000 |
| Manufacturer | TE Connectivity |
| Style | Tinel-Lock Adapter |
| Material | Corrosion Resisting Steel |
| Operating Temperature Range | -65 – 260 |
| Termination Device Included | TR08BI |
| Adapter Entry Size | 8 |
| Termination Device Type | Side-Entry Tinel-Lock Ring |
| Salt Spray Resistance | 1000 |
| TE Internal Number | 699062-000 |
| Connector Shell Size | 15 |
| Cable Diameter Range | .25 – .4 |
| Cable Entry Diameter | .01 – .5 |
| Adapter Angle | 00 |
| Connector General Specification Number | MIL-DTL-38999 Series IV/Class F,W |
| TE Adapter Code | 40 |
| Pluggable I/O Accessory Type | Tinel-Lock Adapter |
| Adapter Plating Material | Passivated per SAE AMS-QQ-P-35 or MIL-S-5002 |
| Connector Detail Specification Number | D38999/46 |
| Overbraid Termination | Tinel-Lock Ring |
