6EH4

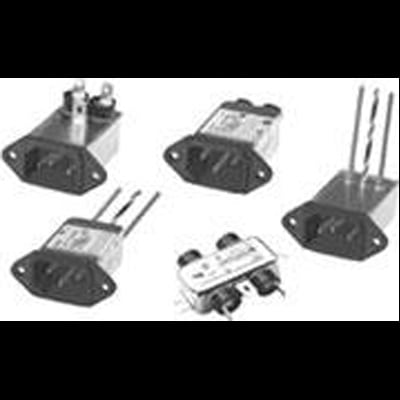

Corcom,Filter,6 A,2250 VDC (Line-to-Ground),1450 VDC (Line-to-Line),250VAC(Max.) | TE Connectivity 6EH4
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6EH4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6EH4
| Part Name | 6EH4 |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Ground Choke Option | No |
| Current Rating (A) | 6 |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 6609013-1 |
| Output Type | .250" FASTON |
| Leakage Current (Max) (250VAC, 50Hz) (A) | .005 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | .002 |
| Mount Style | Flanged |
| Voltage (Max) (V) | 250 |
| Input Type | IEC |
| Filtered | Yes |
| Filter Type | Power Line |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 6 A |
| Dimensions | 50.3 x 55.9 x 20.6 mm |
| Accessory Type | Filter |
| Length | 50.3 (mm) |
| Width | 55.9 (mm) |
| Depth | 20.6 (mm) |
| Electrical Phase | 1 |
| Voltage Range (V) | 250 V ac |
