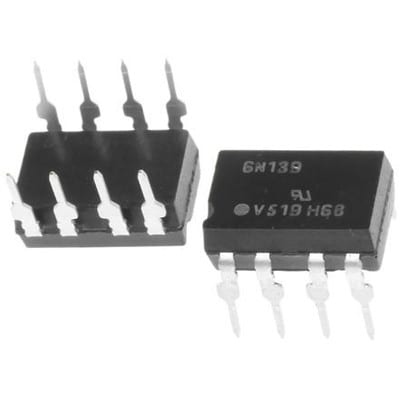

6N139
Optocoupler, High Speed, DIP-8, -55 C, 100 C, -1.8 mV/C (Typ.), 5.0 V (Min) | Vishay / Small Signal & Opto Products (SSP) 6N139
Availability: In Stock
Package Type: DIP-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6N139 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6N139
| Part Name | 6N139 |
| Manufacturer | Vishay Semiconductor |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.7 (V) |
| Output Device | Darlington |
| Input Current Type (A) | DC |
| Mounting Type | Through Hole |
| Series | 6N139 |
| Number Of Channels | 1 |
| Maximum Current Transfer Ratio (A) | 2000 (%) |
| Isolation Voltage (V) | 5300 Vrms |
| Package Type | DIP |
| Number Of Pins | 8 |
| Maximum Input Current (A) | 25 mA |
| Logic Output | Yes |
