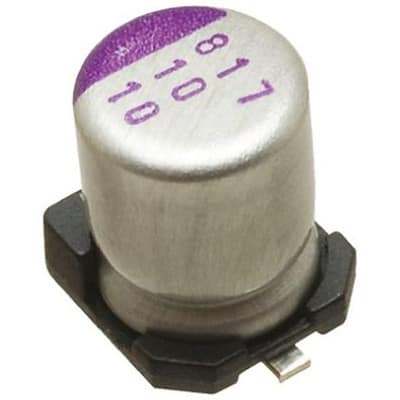

6SVP220M
Capacitor, Aluminum Organic Polymer, 6.3VDC,220uF,25mohm,10x8mm,T&R | Panasonic Electronic Components 6SVP220M
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6SVP220M by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6SVP220M
| Part Name | 6SVP220M |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 8 (mm) |
| Ripple Current (A) | 2.56 (A) |
| Dimensions | 8 (Dia) x 6.9 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Series | SVP |
| Leakage Current (A) | 277 μA |
| Dissipation Factor | 12 (%) |
| Height | 6.9 (mm) |
| Capacitance | 220 (µF) |
| Length | 6.9 (mm) |
| Equivalent Series Resistance | 35 (mΩ) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Lifetime | 2000 (h) |
| Lead Pitch | 3.2 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Polymer |
| Polarised | Polar |
| Voltage (V) | 6.3 (V dc) |
