6VM1S

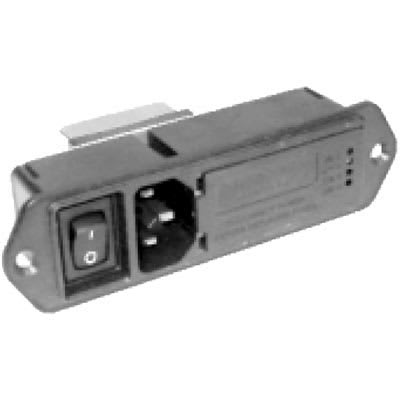

AC Power Entry Module, 6A, 120VAC, Panel Mount, EMI/RFI Filter, M Series | TE Connectivity 6VM1S
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 6VM1S by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 6VM1S
| Part Name | 6VM1S |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Filter Type | Power Entry Module |
| Mount Style | Flanged |
| Current Rating (A) | 6 |
| Input Voltage Select (V) | Single AC |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 2-6609128-8 |
| Output Type | .110" FASTON |
| Ground Option | None |
| Mount Angle | Vertical |
| Leakage Current (Max) (120VAC, 60Hz) (A) | 2 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 240 |
| Fuse Options | Dual |
| Input Type | IEC |
| Type of Connector | IEC 320/C-14 |
| Filtered | No |
| Leakage Current (Max) (250VAC, 50Hz) (A) | 5 |
| Voltage Selection (V) | Single |
| RoHS | True |
| Switch Type | DPST |
