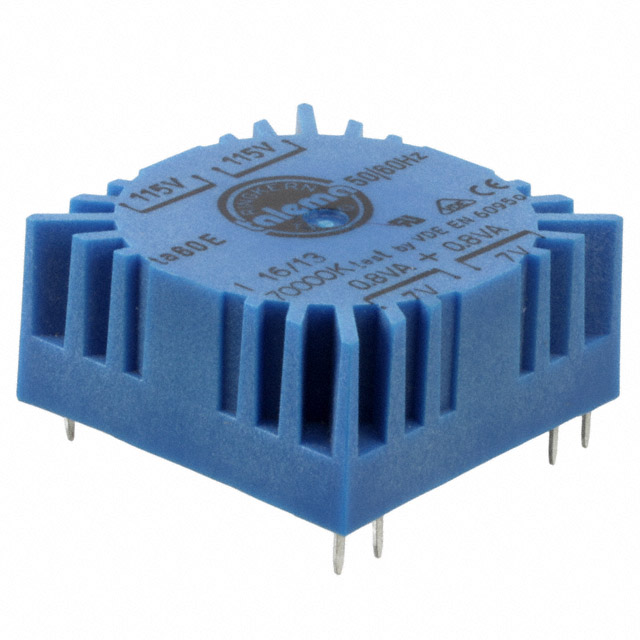

Toroidal 1.6VA Power Transformer 115V, 230V Primary Parallel 7V, Series 14V Secondary Parallel 228mA, Series 114mA Through Hole
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 70000K by Nuvotem Talema and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 70000K
| Part Name | 70000K |
| Manufacturer | Nuvotem Talema |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Number Of Outputs | 2 |
| Maximum Temperature | +60 (°C) |
| Secondary Current (A) | 114 (mA) |
| Dimensions | 39.6 x 39.6 x 18.5 (mm) |
| Weight | 82 (g) |
| Primary Voltage Rating (V) | 115 V ac, 230 V ac |
| Maximum Operating Frequency | 60 (Hz) |
| Fixing Hole Diameter | M4 |
| Secondary Voltage Rating (V) | 2 x 7 (V ac) |
| Minimum Operating Frequency | 50 (Hz) |
| Termination Type | Pin |
| Mounting Type | PCB |
| Power Rating | 1.6 (VA) |
