7022CK

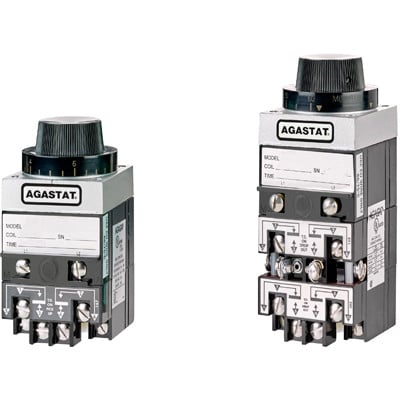

Relay, Time Delay, 10 A, 240 VAC, 2 Form C, DPDT, 2 C/O, 1 to 300 Sec., 480 VAC | TE Connectivity 7022CK
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7022CK by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7022CK
| Part Name | 7022CK |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 4.523 x 2.572 x 2.832 |
| Category | Relays |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Relay Type | Time Delay |
| Mounting Type | Mounting Bracket |
| Operating Temperature Range | -30 – 75 |
| Contact Current Rating (A) | 10A@240VAC |
| Type of Control | Knob |
| TE Internal Number | 3-1423162-4 |
| Mode of Operation | Off-Delay |
| Timing Range (Off-Time) | 1 – 300 |
| Repeatability (Max) | ±10% |
| Input Voltage (V) | 480 |
| Product Category | Electromechanical Relays |
| Termination Type | Screw Terminals |
| Magnetic Blow-Out Device | Without |
| Multiple Timing Ranges | Without |
| Product Type | Relay |
| Actuating System | AC |
| RoHS | N |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
