70543-0008

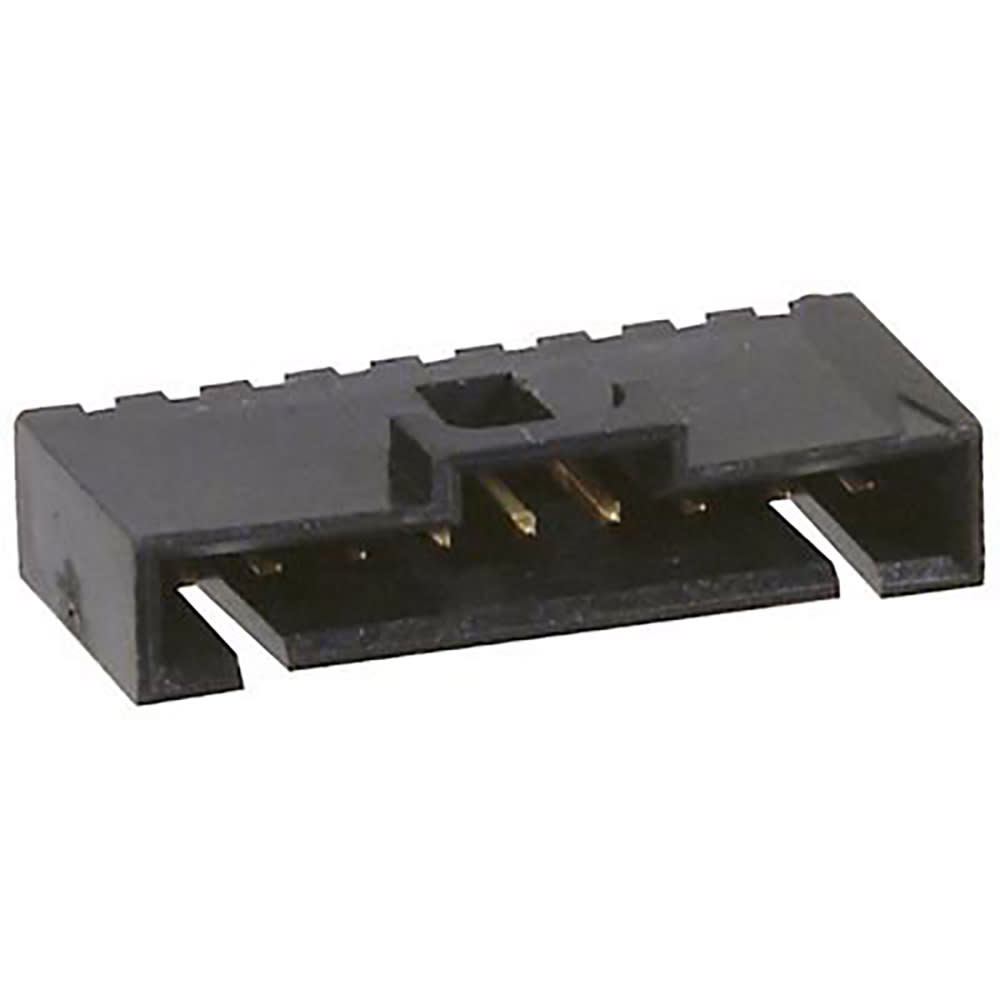

Header vertical shrouded locking surface mount compatiable 9 position | Molex Incorporated 70543-0008
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 70543-0008 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 70543-0008
| Part Name | 70543-0008 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | SL |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 9 |
| Series Number | 70543 |
Inventory for the 70543-0008 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| RS Americas |
43
|
|
Visit Site |
No issues have been reported for the 70543-0008
