70543-0038

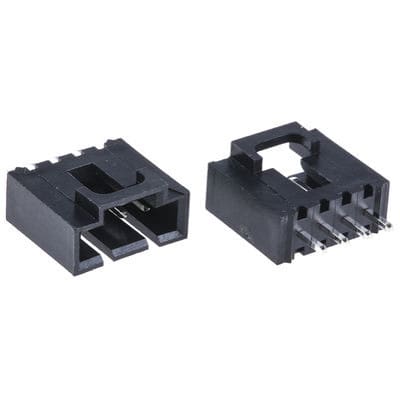

Header 2.54mm, single row, vertical, 4w | Molex Incorporated 70543-0038
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 70543-0038 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 70543-0038
| Part Name | 70543-0038 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | SL |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 4 |
| Series Number | 70543 |
Inventory for the 70543-0038 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
35,086
|
|
Visit Site | |
|
★ Featured
|
2,000
|
840 x $0.41
|
Visit Site | |
| Onlinecomponents |
170
|
|
Visit Site | |
| Verical |
243
|
100 x $0.81
|
Visit Site |
No issues have been reported for the 70543-0038
