710030-5

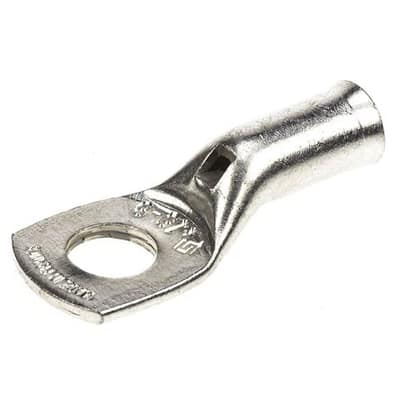

AMPOWER-R Series Uninsulated Tin PlatedTubular Ring Term;8mm Stud Size;5 AWG | TE Connectivity 710030-5
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 710030-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 710030-5
| Part Name | 710030-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Conductor Cross-Section | 16 |
| Voltage Class (V) | ≤ 1 |
| Number of Holes | 1 |
| Compact Format | No |
| Conductor Material | Copper |
| Technology | Crimp |
| Material | Copper |
| TE Internal Number | 710030-5 |
| Outdoor Use | Yes |
| Standards | Designed to Meet NFC 20-130 Requirements |
| Product Availability | EMEA |
| Indoor Use | Yes |
| Barrel Type | Standard |
| Crimp Type | Hexagonal or Indent Crimping |
| Type | Terminal Lug |
| Copper Palm | Yes |
| Palm Hole Diameter | 8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 16 (mm²) |
| Maximum Wire Size Mm | 16 (mm²) |
| Series | XCT |
| Minimum Wire Size Awg | 5 (AWG) |
| Thickness | 1.2 (mm) |
| Stud Size | 8 (mm) |
| Inner Ring Diameter | 8.3 (mm) |
| Contact Plating | Tin |
| Overall Length | 39 (mm) |
| Insulation | Uninsulated |
| Maximum Wire Size Awg | 5 (AWG) |
| Contact Material | Copper |
