733-332
2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical - Through Hole
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 733-332 by WAGO and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

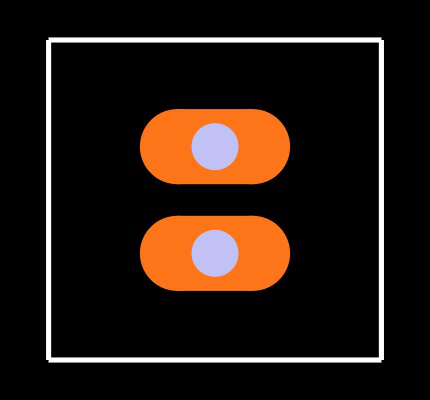

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 733-332
| Part Name | 733-332 |
| Manufacturer | WAGO |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Series | 733 |
| Body Orientation | Straight |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 2.5 (mm) |
| Number Of Contacts | 2 |
Inventory for the 733-332 by WAGO from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
261
|
|
Visit Site | |
|
★ Featured
|
64
|
1,350 x $0.22
|
Visit Site | |
| Arrow Europe |
22
|
|
Visit Site | |
| Onlinecomponents |
554
|
|
Visit Site | |
| Verical |
22
|
17 x $0.61
|
Visit Site |
No issues have been reported for the 733-332
