73366-0030

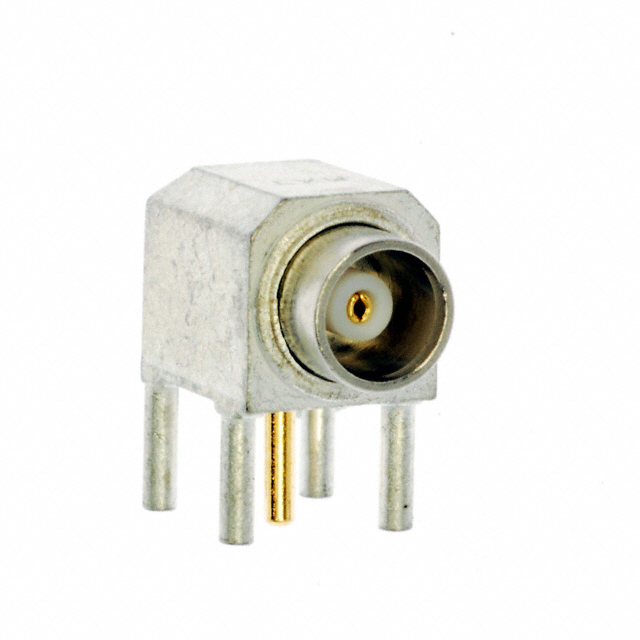

MCX R/A PCB RECEPTACLE 50 OHM | Molex Incorporated 73366-0030
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 73366-0030 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 73366-0030
| Part Name | 73366-0030 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Nickel |
| Mounting Type | Through Hole |
| Series | 73366 |
| Body Orientation | Right Angle |
| Coaxial Connector Type | MCX Connector |
| Contact Plating | Gold |
| Gender | Female |
| Operating Frequency | 6 (GHz) |
| Impedance | 50 (Ω) |
| Contact Material | Beryllium Copper |
| Size | Micro Miniature |
