73391-0070
50 Ohms, SMA PCB Jack Receptacle, Vertical, with Standoffs, 80 Pieces Per Tray | Molex Incorporated 73391-0070
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 73391-0070 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

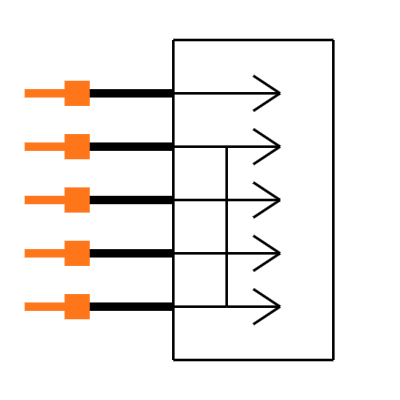

Symbol
No web preview
This Symbol is Available for

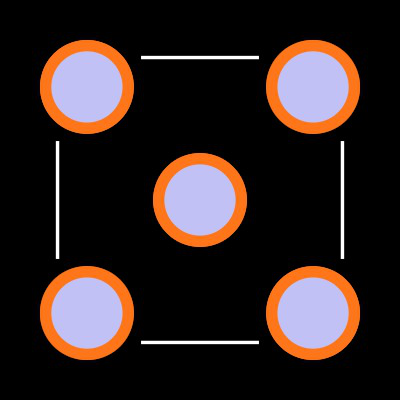

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 73391-0070
| Part Name | 73391-0070 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mating Type | Threaded |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | SMA Connector |
| Bulkhead | No |
| Size | Subminiature |
| Contact Plating | Gold |
| Termination Method | Solder |
| Operating Frequency | 18 (GHz) |
| Impedance | 50 (Ω) |
| Series Number | 73391 |
| Contact Material | Beryllium Copper |
