74279226101
SnapVerified
100 Ohms @ 100 MHz 1 - Ferrite Bead 1812 (4532 Metric) 8A 6mOhm
Availability: Out of Stock
Package Type: 1812
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74279226101 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

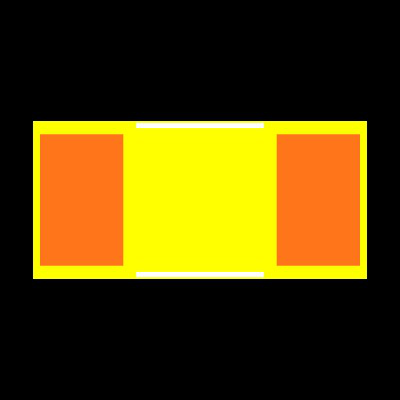

Footprint
No web preview
This Footprint is Available for

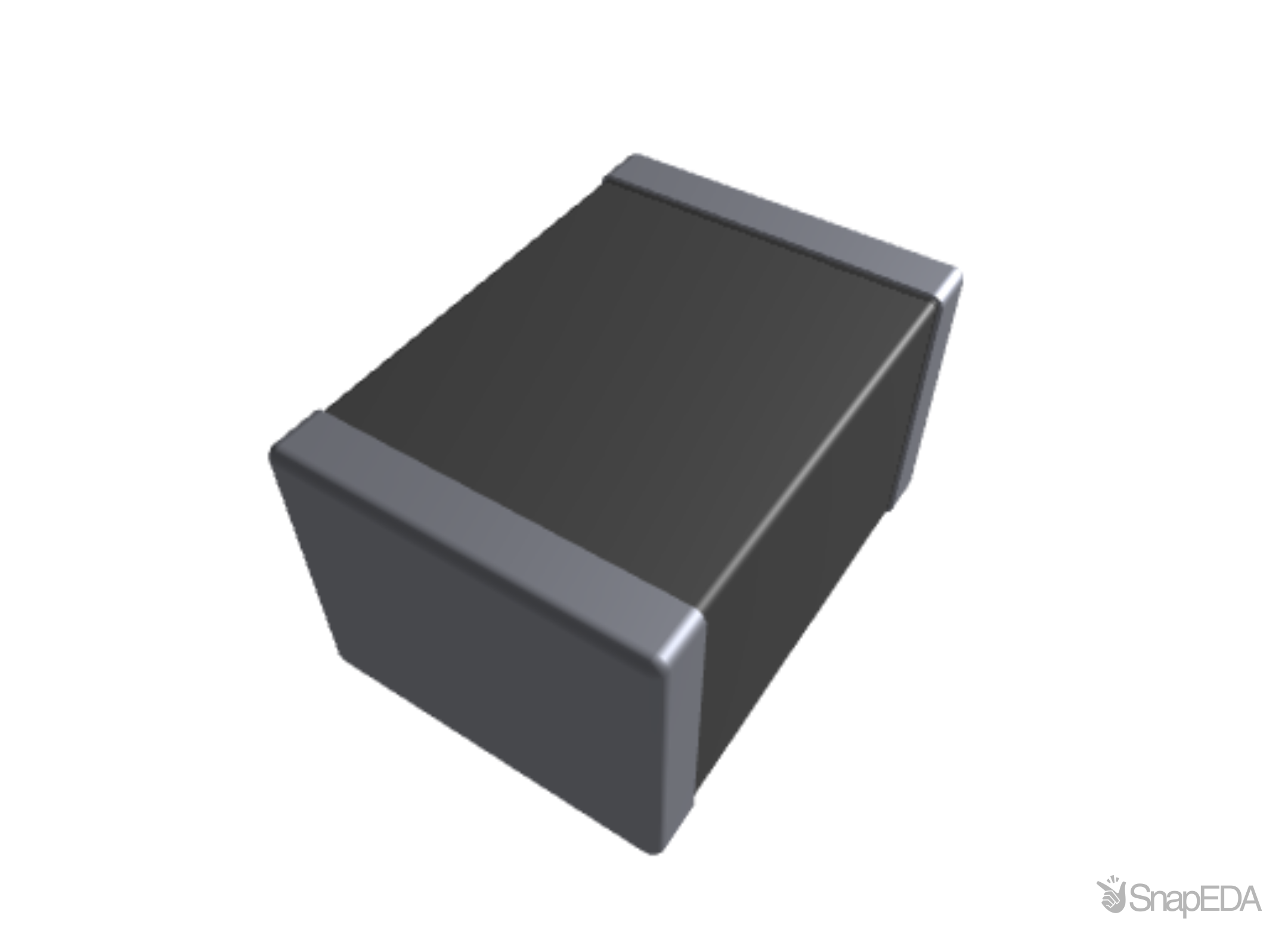

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74279226101
| Part Name | 74279226101 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 1812 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 1812; Z @ 100 MHz = 100 Ω; Zmax = 160 Ω @ 1100 MHz; IR = 8000 mA; RDC = 0.006 Ω |
| Product Family | Ferrites For PCB Assembly |
| Weight | 0.1679 |
| Ro Hs Approval | Compliant |
| Spq | 2500 |
| Current Revision (A) | 1.10.0 |
| Packaging Type | 13''Reel |
| Height | 2.3 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 3.2 mm |
| Length | 4.5 mm |
| Product Unit | eiSos |
| Product Group Description | EMC Components |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
