742792510
SnapVerified
70 Ohms @ 100MHz 1 Signal Line Ferrite Bead 1812 (4532 Metric) 6A 30mOhm
Availability: Out of Stock
Package Type: 1812
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 742792510 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

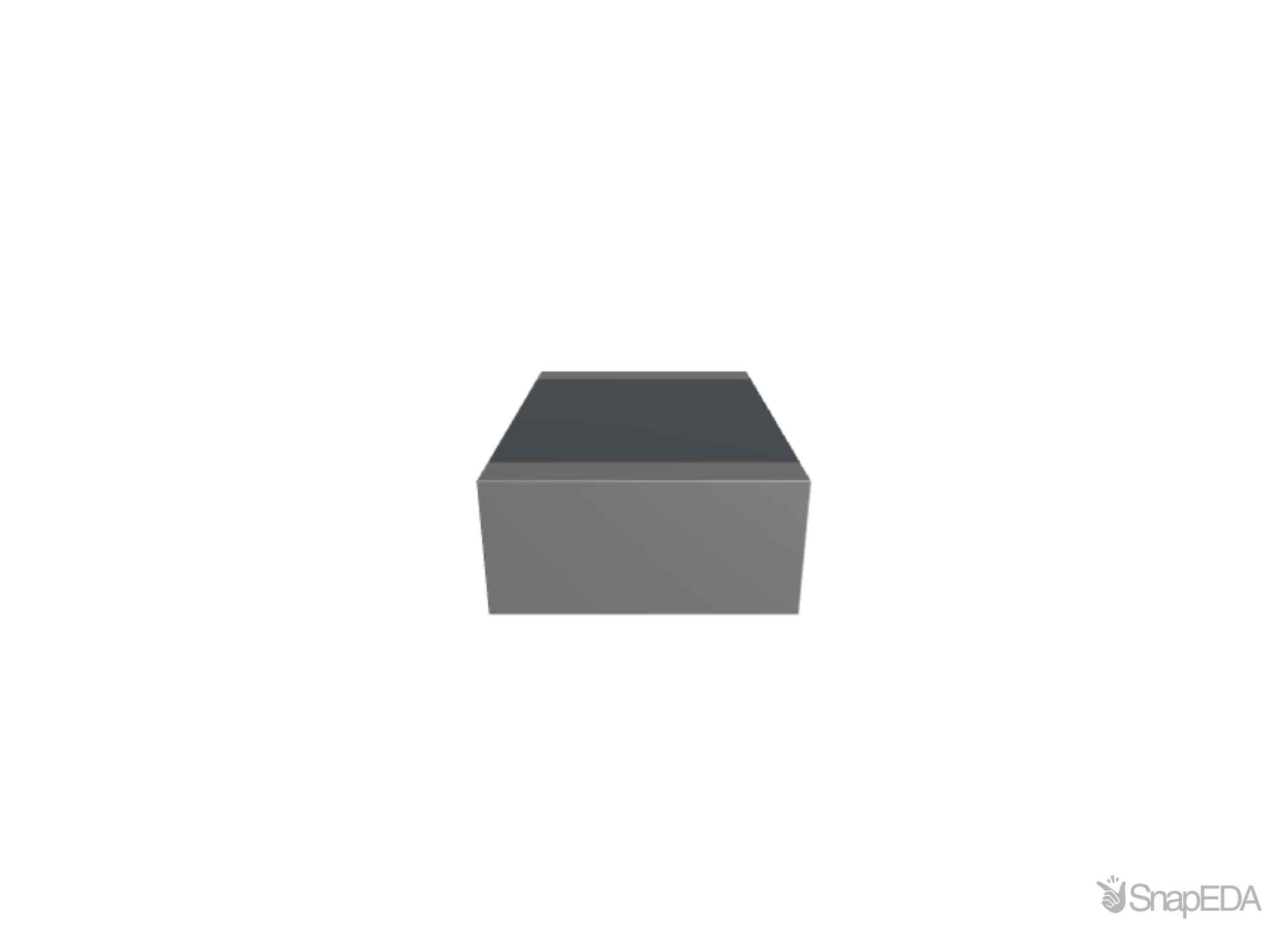

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 742792510
| Part Name | 742792510 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 1812 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 1812; Z @ 100 MHz = 70 Ω; Zmax = 120 Ω @ 1000 MHz; IR = 6000 mA; RDC = 0.03 Ω |
| Product Family | Ferrites For PCB Assembly |
| Weight | 0.10043 |
| Ro Hs Approval | Compliant |
| Spq | 1000 |
| Current Revision (A) | 6.0.0 |
| Packaging Type | 7''Reel |
| Height | 1.5 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 3.2 mm |
| Length | 4.5 mm |
| Product Unit | eiSos |
| Operating Temperature | -55 °C up to +125 °C |
| Product Group Description | EMC Components |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
