7427928161
SnapVerified
Ferrite Beads WE-CBF 160Ohms 5K mA 0.01Ohms
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7427928161 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

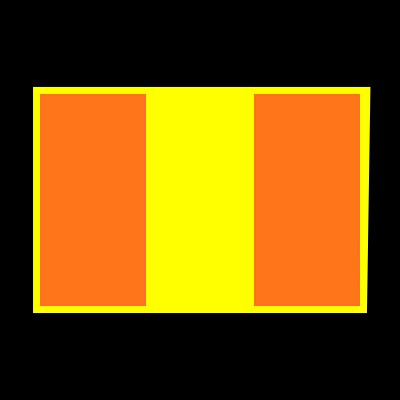

Footprint
No web preview
This Footprint is Available for

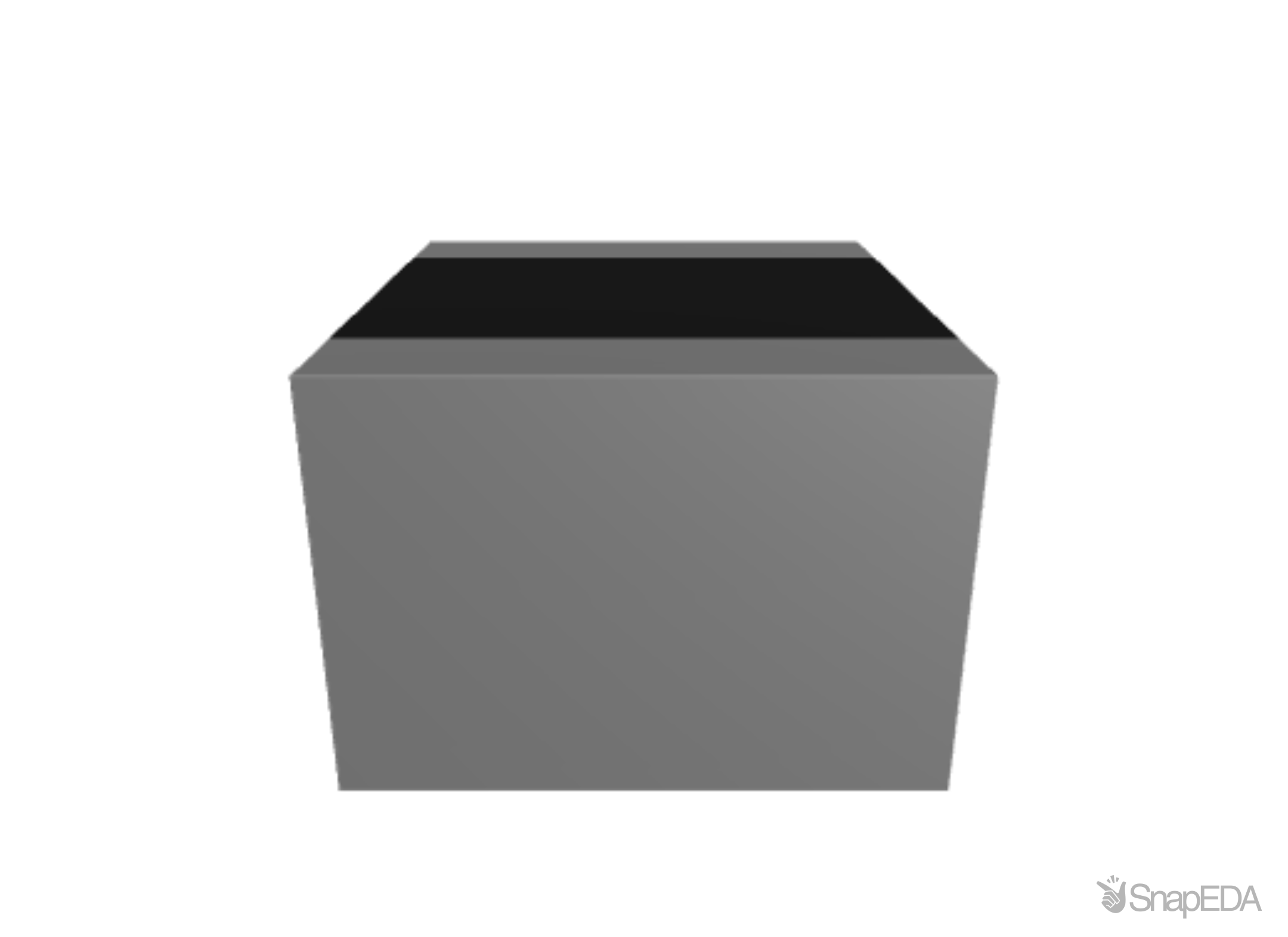

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7427928161
| Part Name | 7427928161 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 2220 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 2220; Z @ 100 MHz = 160 Ω; Zmax = 240 Ω @ 610 MHz; IR = 5000 mA; RDC = 0.01 Ω |
| Product Family | Ferrites For PCB Assembly |
| Weight | 0.2538 |
| Ro Hs Approval | Compliant |
| Spq | 2000 |
| Current Revision (A) | 1.1.0 |
| Packaging Type | 13''Reel |
| Height | 1.8 mm |
| Reach Approval | Conform or declared |
| Width | 5.1 mm |
| Length | 5.6 mm |
| Product Unit | eiSos |
| Product Group Description | EMC Components |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
