7427932
98 Ohms @ 100 MHz 1 Ferrite Bead 2-SMD, J-Lead 18A 0.9mOhm
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7427932 by Würth Elektronik Midcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

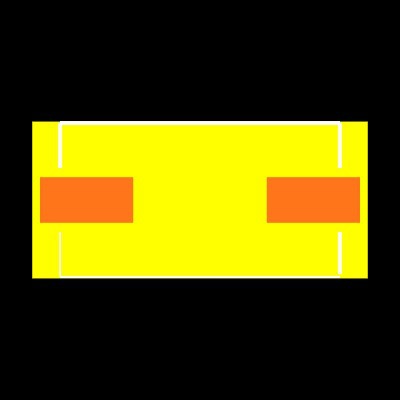

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7427932
| Part Name | 7427932 |
| Manufacturer | Würth Elektronik |
| Product Series Size | 7847 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Z @ 25 MHz = 65 Ω; Z @ 100 MHz = 98 Ω; IR = 18 A; RDC = 0.9 mΩ |
| Width | 4.75 mm |
| Product Family | Ferrites For PCB Assembly |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Rated Current (A) | 18 |
| Spq | 500 |
| Current Revision (A) | 7.0.0 |
| Packaging Type | 7''Reel |
| Height | 3 mm |
| Reach Approval | Conform or declared |
| Weight | 0.509 |
| Length | 7.8 mm |
| Product Unit | eiSos |
| Operating Temperature | -55 °C up to +125 °C |
| Product Group Description | EMC Components |
| Life Cycle Status | Active |
