74320-1000

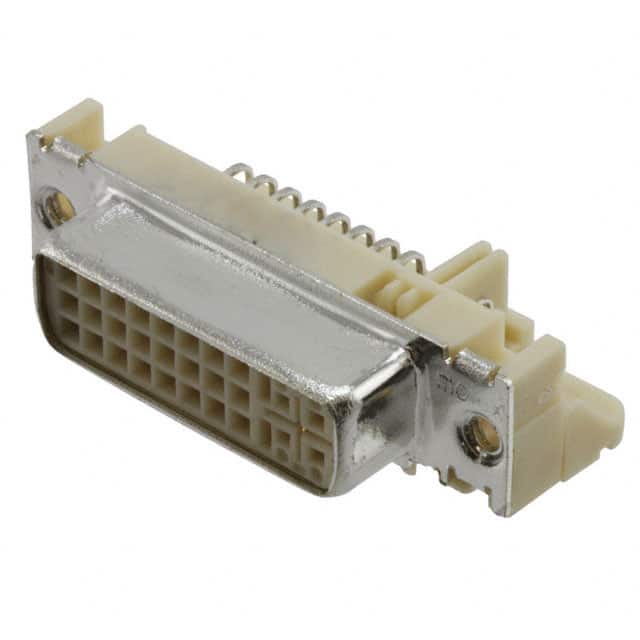

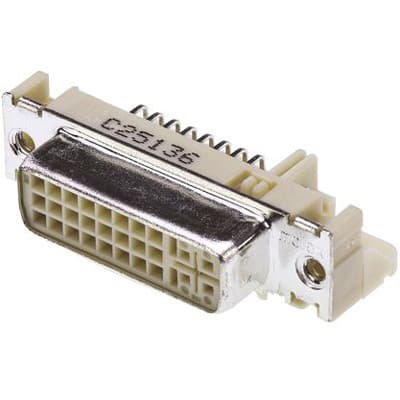

Receptacle, PCB, DVI, panel mnt, T/H, R/A, 29 Circuit | Molex Incorporated 74320-1000
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74320-1000 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

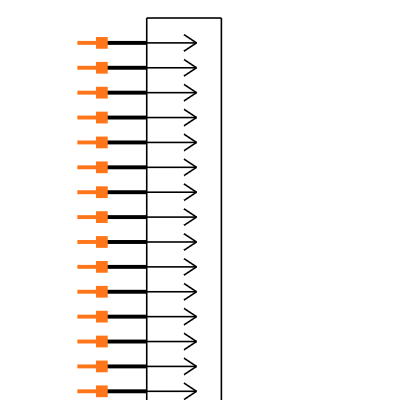

Symbol
No web preview
This Symbol is Available for

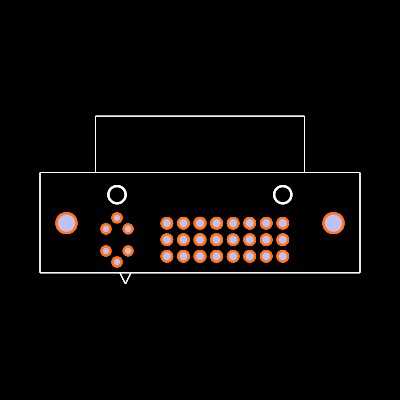

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74320-1000
| Part Name | 74320-1000 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Dimensions | 36.83 x 9.91 x 18.03 (mm) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 40.0 V |
| Gender | Female |
| Series | MicroCross 74320 |
| Body Orientation | Right Angle |
| Series Number | 74320 |
| Depth | 18.03 (mm) |
| Termination Method | Solder |
| Housing Material | Polymer |
| Width | 9.91 (mm) |
| Length | 36.83 (mm) |
| Minimum Operating Temperature | -20.0 (°C) |
| Pitch | 1.91 (mm) |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 29 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Copper Alloy |
No issues have been reported for the 74320-1000
