74408053004
SnapVerified
Power Inductors - SMD WE-HEPC 4.7 uH 1.4 A 100mOhms AEC-Q200
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74408053004 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

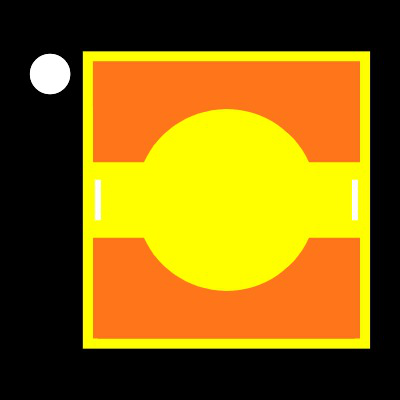

Footprint
No web preview
This Footprint is Available for

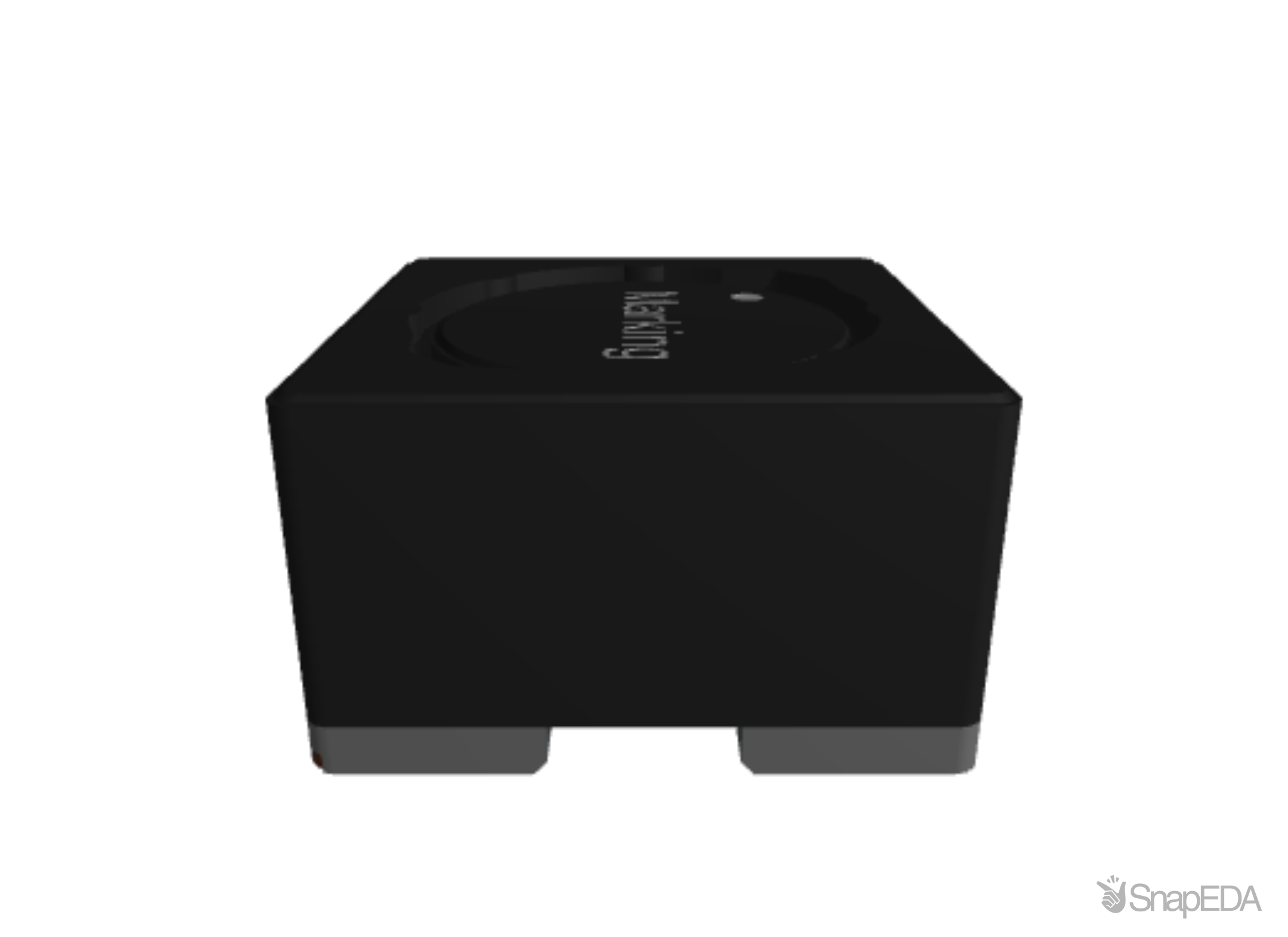

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74408053004
| Part Name | 74408053004 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 5030 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 5030; L = 4,7 µH ; IR = 1,4 A; Isat = 2,1 A; RDC = 100 mΩ |
| Product Family | Single Coil Power Inductors |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Rated Current (A) | 1.4 |
| Spq | 2000 |
| Current Revision (A) | 2.3.0 |
| Packaging Type | 13''Reel |
| Height | 2.85 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 4.9 mm |
| Length | 4.9 mm |
| RoHS | True |
| Product Unit | eiSos |
| Product Group Description | Power Magnetics |
| Life Cycle Status | Active |
| Weight | 0.165 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
