744231091
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 370mA DCR 300mOhm
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744231091 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

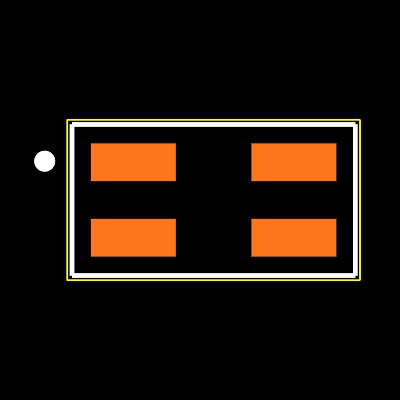

Footprint
No web preview
This Footprint is Available for

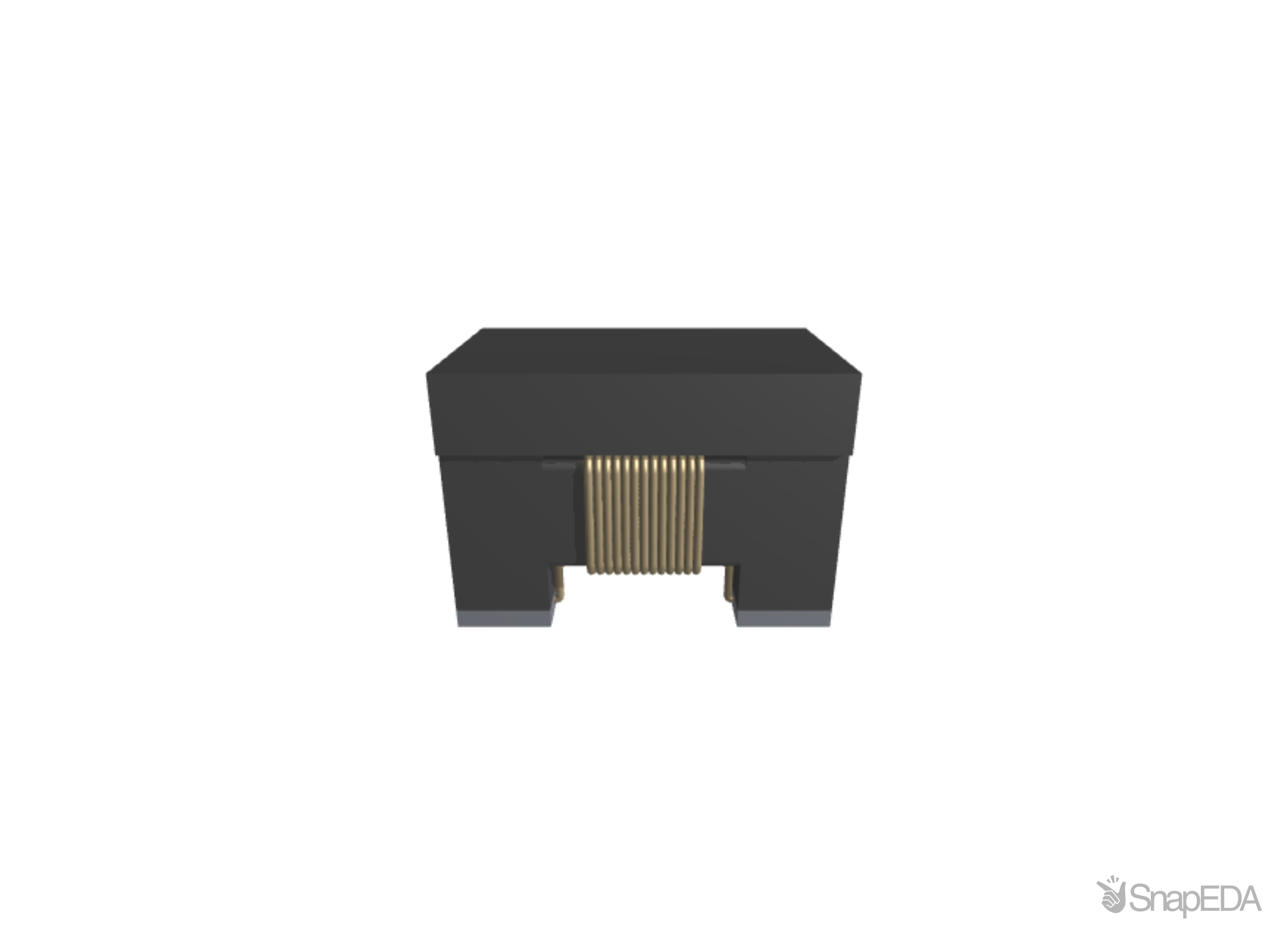

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744231091
| Part Name | 744231091 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 0805 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 0805; Z = 90 Ω; IR = 370 mA; RDC = 0.30 Ω |
| Width | 1.2 mm |
| Product Family | Common Mode Chokes for Data and Signal Lines |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 0.37 |
| Spq | 2000 |
| Current Revision (A) | 5.10.0 |
| Packaging Type | 7''Reel |
| Height | 1.2 mm |
| Reach Approval | (EC)1907/2006 |
| Weight | 0.012 |
| Length | 2 mm |
| RoHS | True |
| Product Unit | eiSos |
| Operating Temperature | -40 °C up to +125 °C |
| Product Group Description | EMC Components |
| Sample Link | https://www.we-online.com/redexpert/article/744231091?_sm-2024-09 |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 744231091 by Wurth Elektronik from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
39
|
|
Visit Site | |
| Farnell UK |
15,677
|
|
Visit Site | |
| Newark |
50
|
|
Visit Site | |
| RS UK |
480
|
|
Visit Site | |
| element14 Singapore |
18,178
|
|
Visit Site |
No issues have been reported for the 744231091
