1.3 µH Shielded Wirewound Inductor 34.5 A 0.94mOhm Nonstandard
Availability: In Stock
Package Type: 1210
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7443556130 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

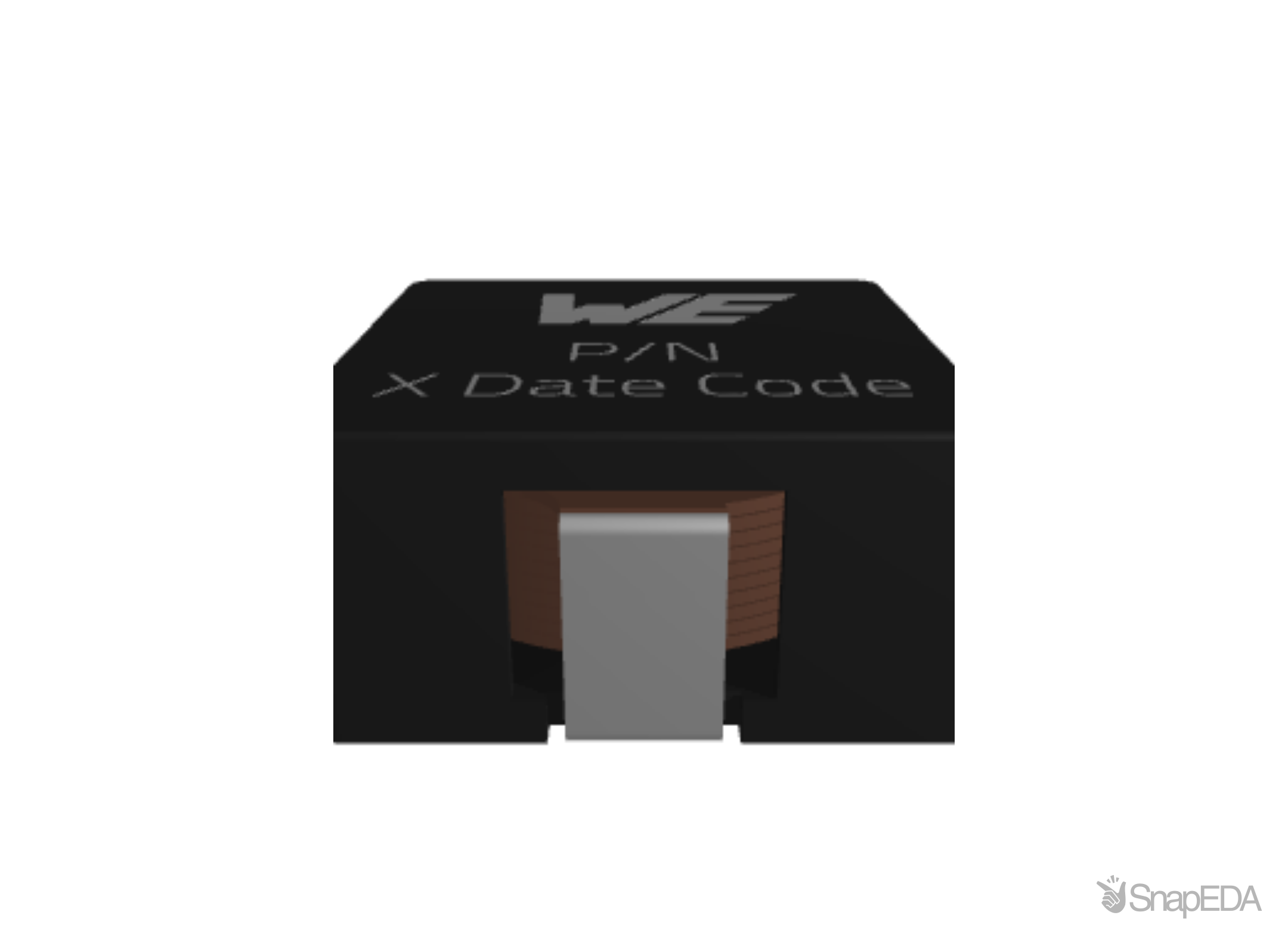

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7443556130
| Part Name | 7443556130 |
| Manufacturer | Wurth Electronics |
| Product Series Size | 1890 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 1890; L = 1.3 µH ±20%; IR = 34.5 A; Isat = 62 A; RDC = 0.94 mΩ |
| Product Family | Single Coil Power Inductors |
| Weight | 13.4233 |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 34.5 |
| Spq | 150 |
| Current Revision (A) | 5.1.0 |
| Packaging Type | 13''Reel |
| Height | 8.9 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 18.2 mm |
| Length | 18.3 mm |
| Product Unit | eiSos |
| Product Group Description | Power Magnetics |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
