74439346012
SnapVerified
1.2 µH Shielded Molded Inductor 14.2 A 3.65mOhm Nonstandard
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74439346012 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

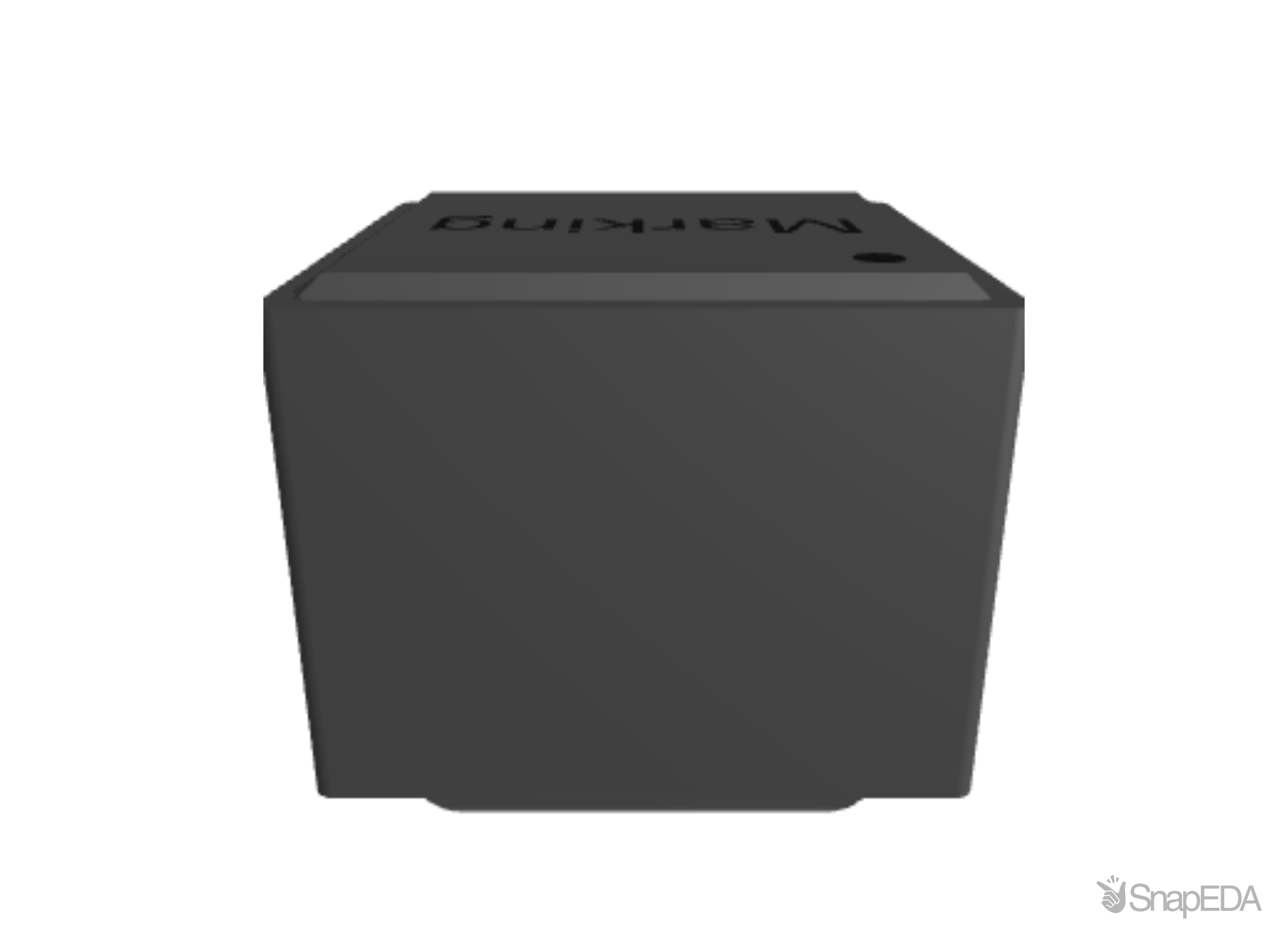

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74439346012
| Part Name | 74439346012 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 6060 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 6060; L = 1.2 µH ; IR = 14.2 A; Isat = 20 A; RDC = 3.65 mΩ |
| Weight | 1.41 |
| Product Family | Single Coil Power Inductors |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Rated Current (A) | 14.2 |
| Spq | 700 |
| Current Revision (A) | 1.3.0 |
| Packaging Type | 13''Reel |
| Height | 6.10 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 6.45 mm |
| Length | 6.65 mm |
| Product Unit | eiSos |
| Product Group Description | Power Magnetics |
| Sample Link | https://www.we-online.com/redexpert/article/74439346012?_sm-2024-09 |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
