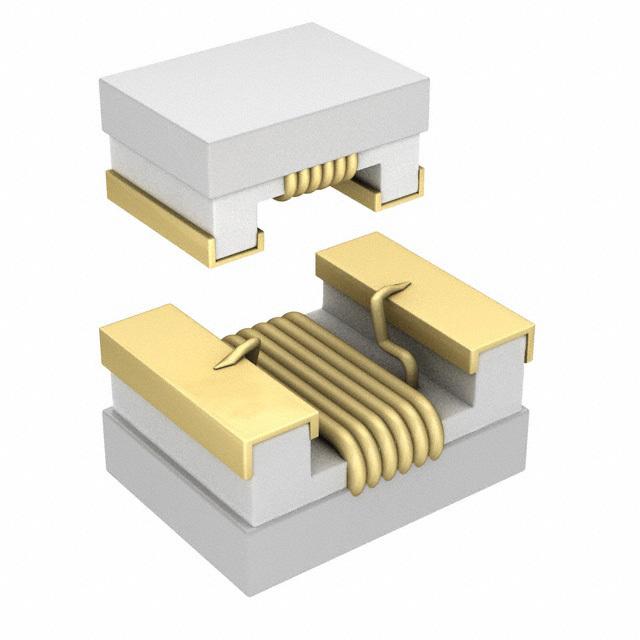

744761082C
INDUCTOR, 0603, 8.2NH, 0.7A; Product Range:WURTH ELEKTRONIK - WE-KI Series SMD Wire Wound Ceramic Inductors; Inductance:8.2nH; Inductance Tolerance:± 5%; DC Resistance Max:0.1ohm; Q Factor:28; DC Current Rating:700mA; Self Resonant ;RoHS Compliant: Yes
Availability: Out of Stock
Package Type: 0603
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744761082C by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

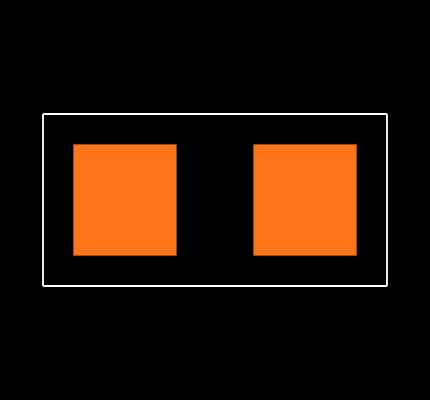

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744761082C
| Part Name | 744761082C |
| Manufacturer | Wurth |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 100 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 1.65 x 1.15 x 0.9 (mm) |
| Tolerance | ±5 (%) |
| Inductance | 8.2 nH |
| Maximum Dc Current (A) | 700 (mA) |
| Series | WE-KI |
| Length | 1.65 (mm) |
| Height | 0.9 (mm) |
| Package Case | 0603C |
| Depth | 1.15 (mm) |
| Core Material | Ceramic |
| Minimum Quality Factor | 28 |
| Maximum Self Resonant Frequency | 4.7 (GHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
