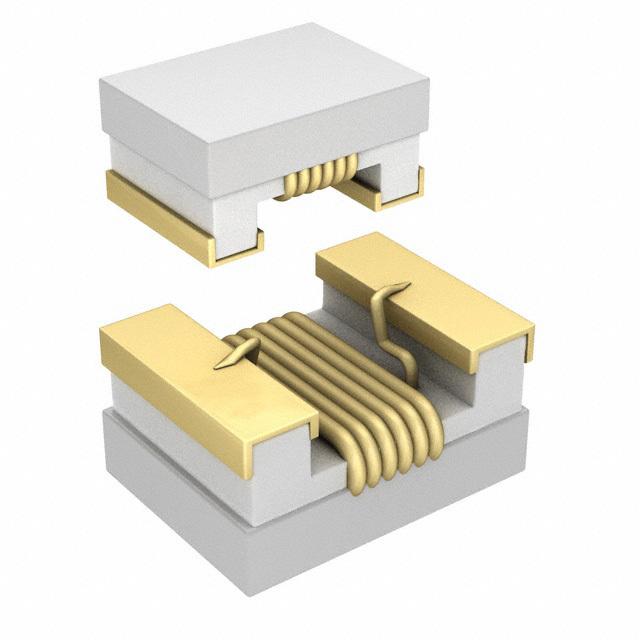

744761147C
INDUCTOR, 0603, 47NH, 0.6A; Inductance:47nH; Inductance Tolerance:± 5%; DC Resistance Max:0.23ohm; Q Factor:35; DC Current Rating:600mA; Self Resonant Frequency:2GHz; Q Test Frequency:200MHz; Inductor Case Style:0603; No. of Pins:2; Core Material:Ceramic; SVHC:No SVHC (18-Jun-2012); DC Current Max:600mA; Inductor Type:Multilayer; Package / Case:0603C; Q @ Vr F:35; Q Factor @ Frequency:35 @ 200MHz; Resistance:230mohm; Resonant Frequency:2GHz; Series:WE-KI
Availability: In Stock
Package Type: 0603
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744761147C by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

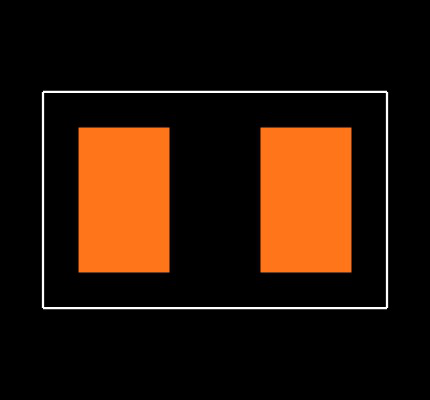

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744761147C
| Part Name | 744761147C |
| Manufacturer | Wurth Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 744761147C by Wurth Elektronik from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
1,385
|
|
Visit Site | |
| Newark |
1,385
|
|
Visit Site | |
| RS UK |
100
|
20 x $0.31
|
Visit Site | |
| element14 Singapore |
1,385
|
|
Visit Site |
No issues have been reported for the 744761147C
