744764004
SnapVerified

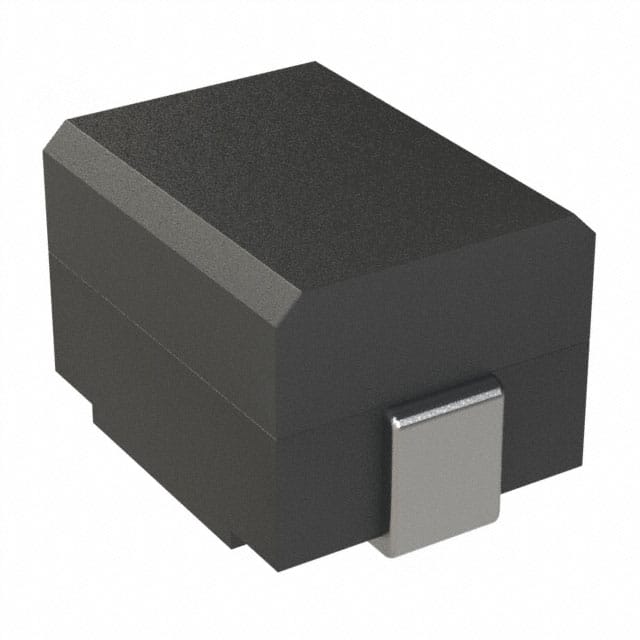

WE-GF Series; Wire-wound SMD Inductor with Ferrite Core, 470 nH | Wurth Electronics 744764004
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744764004 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744764004
| Part Name | 744764004 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | 3225 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 3225; L = 0.47 µH ±10%; IR = 450 mA; RDC = 0.5 Ω |
| Product Family | Single Coil Power Inductors |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Rated Current (A) | 0.45 |
| Spq | 1000 |
| Current Revision (A) | 7.1.0 |
| Packaging Type | 7''Reel |
| Category | Electronic Components |
| Height | 2.2 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 2.5 mm |
| Length | 3.2 mm |
| RoHS | True |
| Product Unit | eiSos |
| Product Group Description | Power Magnetics |
| Life Cycle Status | Active |
| Weight | 0.05 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 744764004
If you experienced any issues with the symbol or footprint, please report it.
