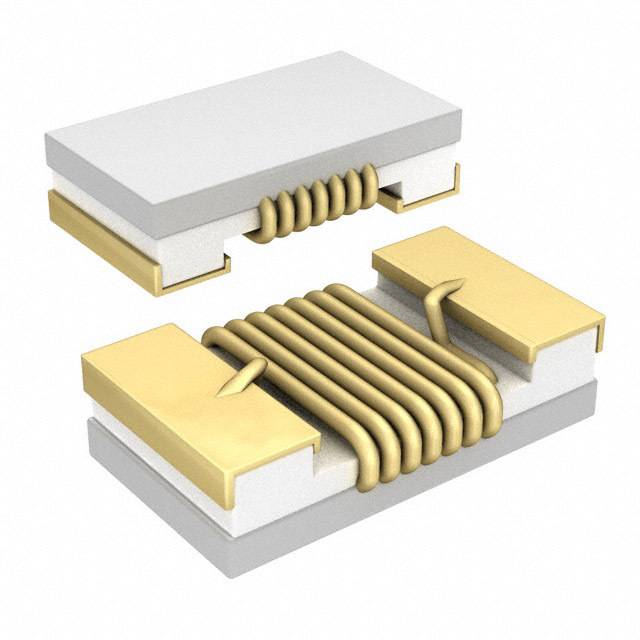

744765075A
INDUCTOR, 0402, 7.5NH, 680MA; Inductance:7.5nH; Inductance Tolerance:± 5%; DC Resistance Max:0.104ohm; Q Factor:25; DC Current Rating:680mA; Self Resonant Frequency:5.8GHz; Q Test Frequency:250MHz; Inductor Case Style:0402; No. of Pins:2; Core Material:Ceramic; SVHC:No SVHC (18-Jun-2012); DC Current Max:680mA; Inductor Type:Multilayer; Package / Case:0402; Q @ Vr F:50; Q Factor @ Frequency:25 @ 250MHz; Resistance:104mohm; Resonant Frequency:5.8GHz; Series:WE-KI
Availability: In Stock
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744765075A by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744765075A
| Part Name | 744765075A |
| Manufacturer | Wurth |
| Product Series Size | 0402A |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 0402; L = 7.5 nH ±5 %; Qmin = 25; RDCmax = 0.104 Ω |
| Product Family | RF Inductors |
| Weight | 0.0008 |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 0.68 |
| Spq | 3000 |
| Current Revision (A) | 3.0.0 |
| Packaging Type | 7''Reel |
| Height | 0.5 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 0.55 mm |
| Length | 1 mm |
| Product Unit | eiSos |
| Operating Temperature | -40 °C up to +125 °C |
| Product Group Description | Signal & Communications |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
