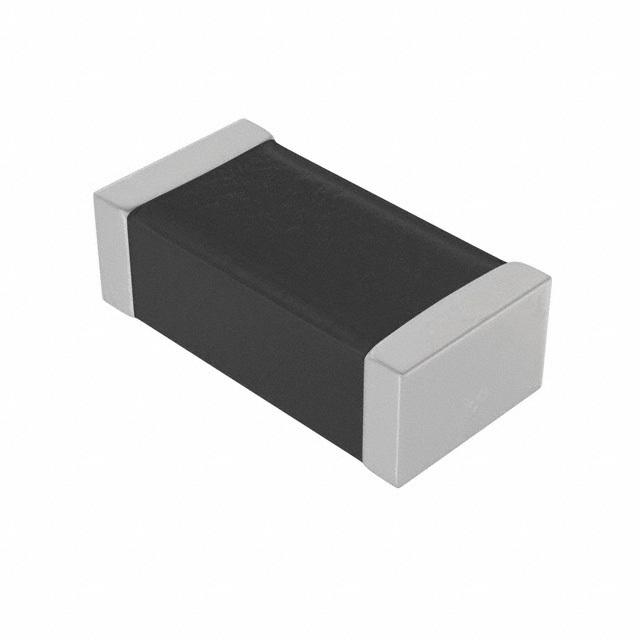

744901039
Fixed Ind 3.9nh 340ma 500 Mohm
Availability: Out of Stock
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 744901039 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 744901039
| Part Name | 744901039 |
| Manufacturer | Wurth |
| Product Series Size | 0402 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size 0402; L = 3.9 nH ± 0.1 nH; Qmin = 13; RDCmax = 0.5 Ω |
| Product Family | RF Inductors |
| Weight | 0.0009 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Rated Current (A) | 0.34 |
| Spq | 10000 |
| Current Revision (A) | 3.1.0 |
| Packaging Type | 7''Reel |
| Height | 0.32 mm |
| Reach Approval | Conform or declared |
| Width | 0.5 mm |
| Length | 1 mm |
| Product Unit | eiSos |
| Product Group Description | Signal & Communications |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 500 (mΩ) |
| Inductor Construction | Film |
| Dimensions | 1 x 0.5 x 0.32 (mm) |
| Shielded | Yes |
| Series | WE-TCI |
| Minimum Quality Factor | 13 |
| Depth | 0.5 (mm) |
| Height | 0.32 (mm) |
| Package Case | 0402 (1005M) |
| Length | 1 (mm) |
| Core Material | Thin Film |
| Inductance | 3.9 nH |
| Maximum Self Resonant Frequency | 6 (GHz) |
| Maximum Dc Current (A) | 340 (mA) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±0.1 (nH) |
| Minimum Operating Temperature | -40 (°C) |
No issues have been reported for the 744901039
