7461057

Name: 7461057
Brand: Wurth Elektronik

6 Pin Screw Terminal, Power Tap M3 Through Hole

Availability: In Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 7461057 by Wurth Elektronik and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

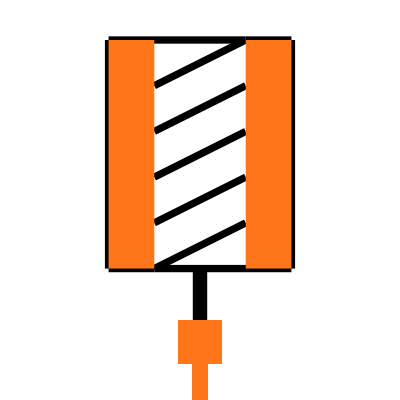

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

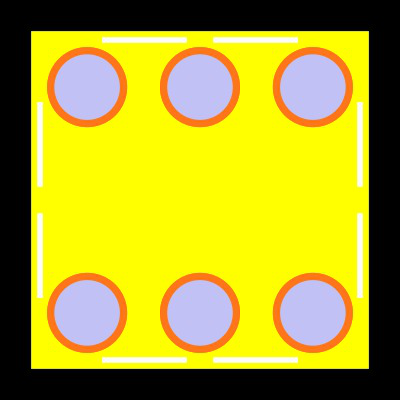

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

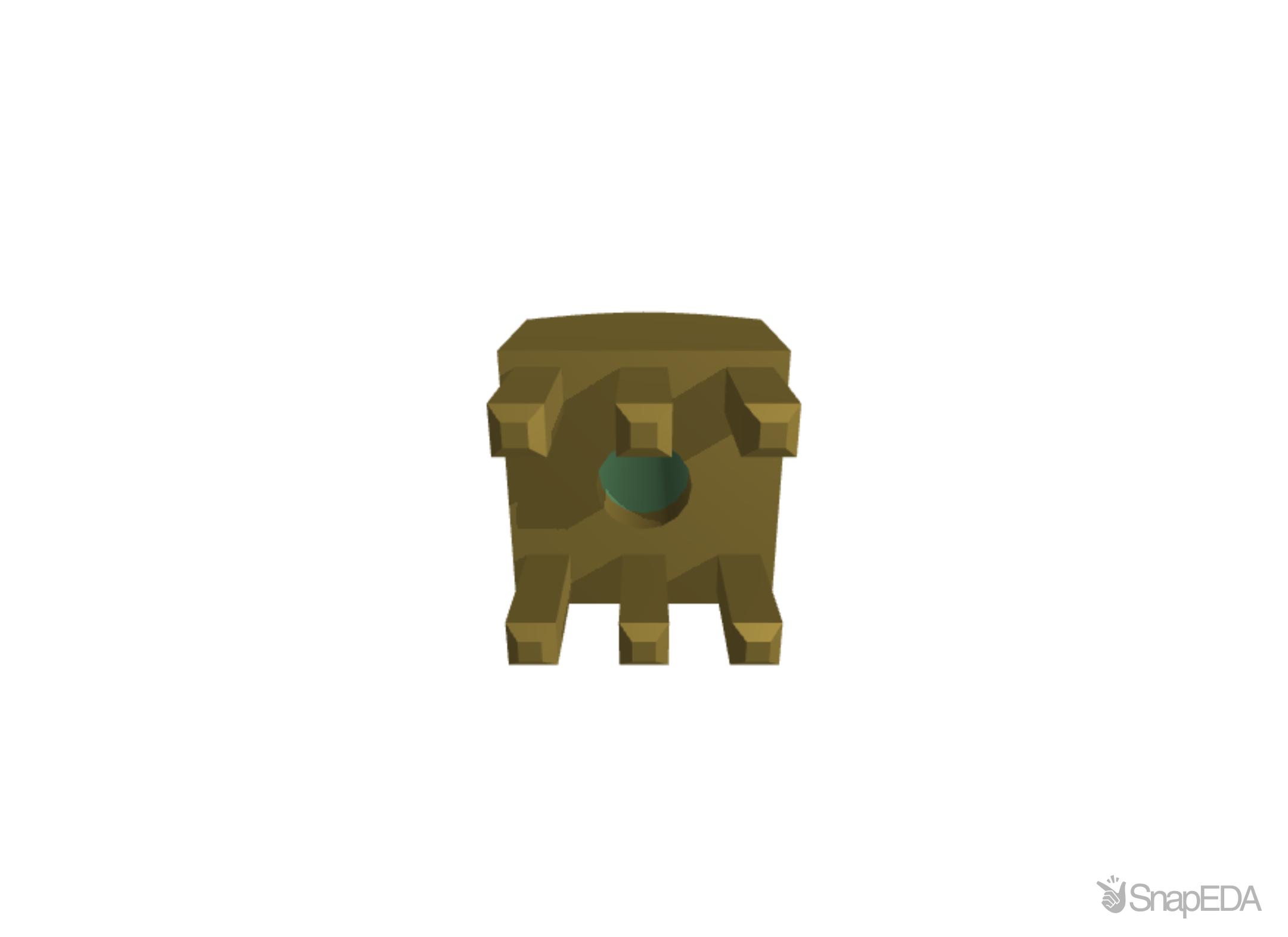

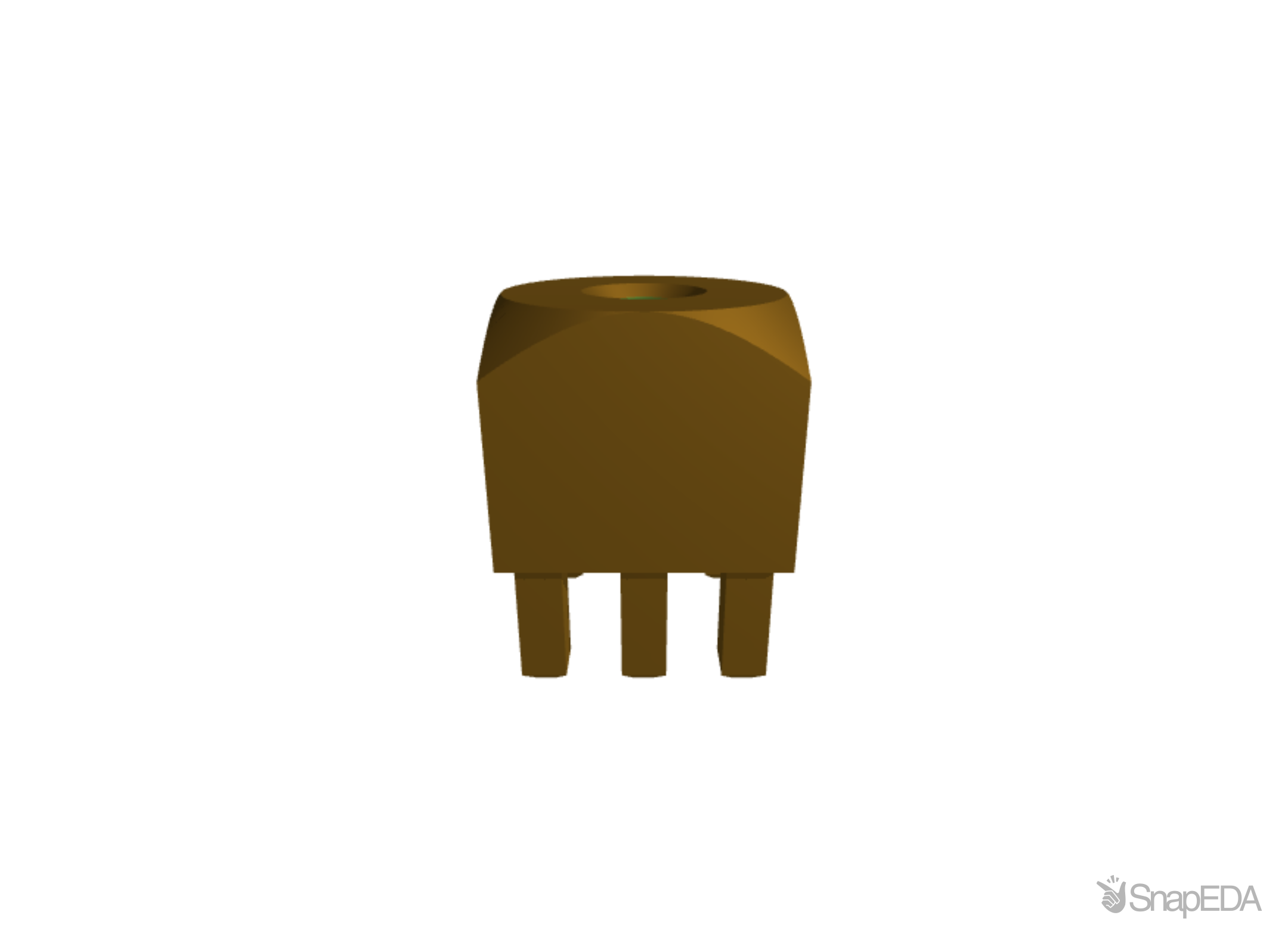

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 7461057

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 7461057

Part Name	7461057
Manufacturer	Wurth Electronics
Product Series Size	Internal Thread, Two Rows
Division	Electromechanics
Article Description Long	height: 6mm, total height: 9.5mm, thread length: 6mm, pin length: 3.5mm, raster: 2.54mm, REDCUBE Press-Fit; M3, blind thr 6mm
Product Family	REDCUBE PRESS-FIT
Weight	2.4
Ro Hs Approval	2011/65/EU&2015/863
Rated Current (A)	100
Spq	550
Current Revision (A)	1.3.0
Packaging Type	Reel
Height	6 mm
Reach Approval	Conform or declared
Width	7 mm
Length	{u'is_url': False, u'value': u''}
Product Unit	eiCan
Sample Link	https://www.we-online.com/redexpert/article/7461057?_sm-2024-09
Operating Temperature	-55 °C up to +150 °C
Product Group Description	REDCUBE Terminals
RoHS	True
Life Cycle Status	Active
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
