74650073R
4 Pin Screw Terminal, Power Tap M3 Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74650073R by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

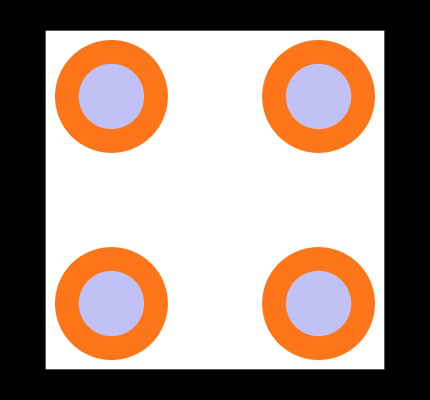

Footprint
No web preview
This Footprint is Available for

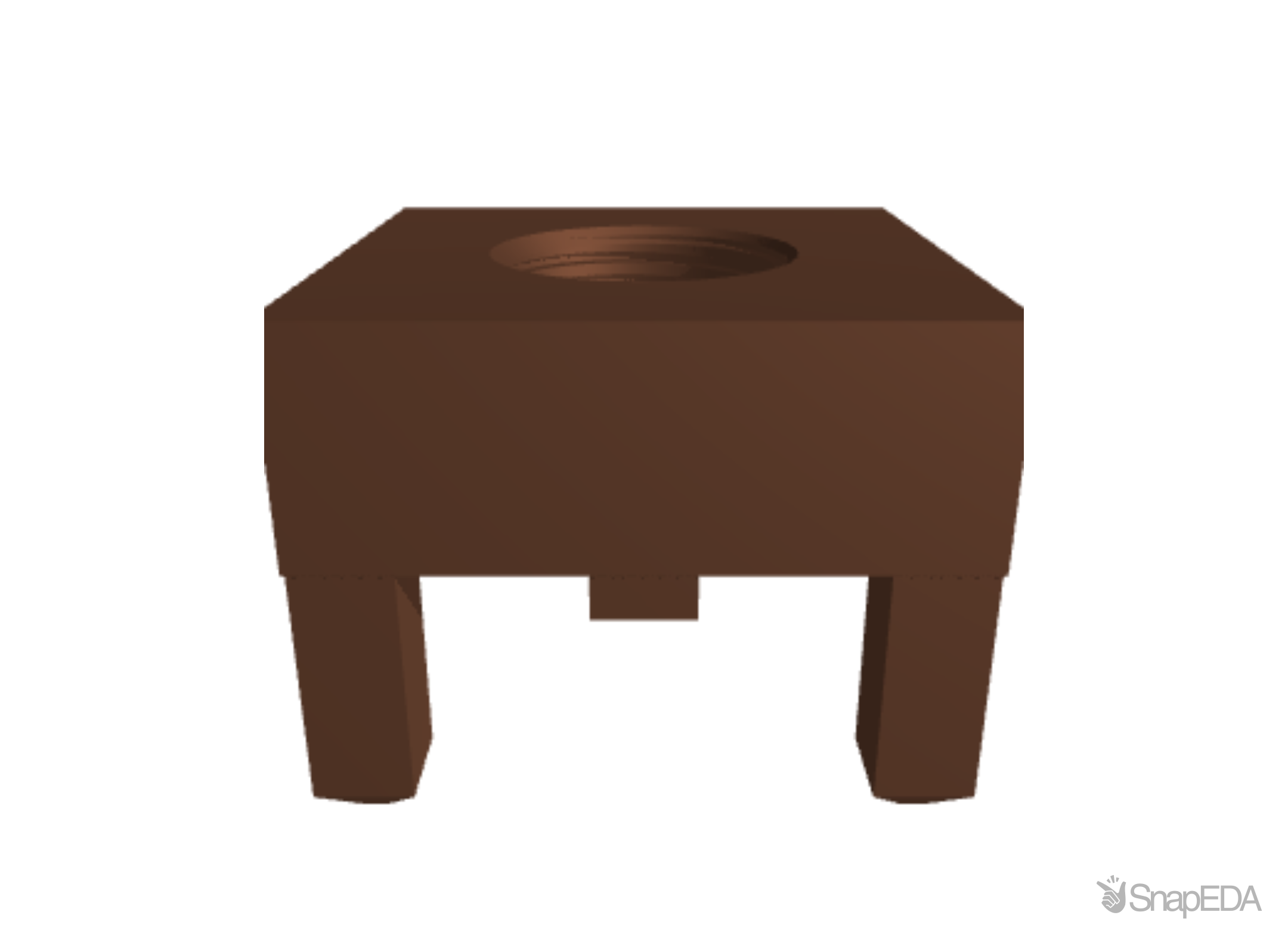

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74650073R
| Part Name | 74650073R |
| Manufacturer | Wurth Electronics |
| Product Series Size | Internal Through-Hole Thread |
| Division | Electromechanics |
| Article Description Long | height: 3mm, total height: 5.5mm, thread: M3 x 2.5mm, raster: 5.87mm, on Reel, with Polyimide Tape, REDCUBE THR; M3, thr 2.5mm |
| Product Family | REDCUBE THR |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 50 |
| Spq | 750 |
| Current Revision (A) | 2.2.0 |
| Packaging Type | 13'' Plastic Reel |
| Height | 3 mm |
| Reach Approval | Conform or declared |
| Width | 7 mm |
| Length | {'is_url': False, 'value': u''} |
| RoHS | RoHS Compliant By Exemption |
| Product Unit | eiCan |
| Product Group Description | REDCUBE Terminals |
| Life Cycle Status | Active |
| Weight | 1.053 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
