7492550500
45 A 1:500 Current Sense Transformer 47Hz ~ 400Hz 0.27mOhm Primary, 16.2Ohm Secondary Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7492550500 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

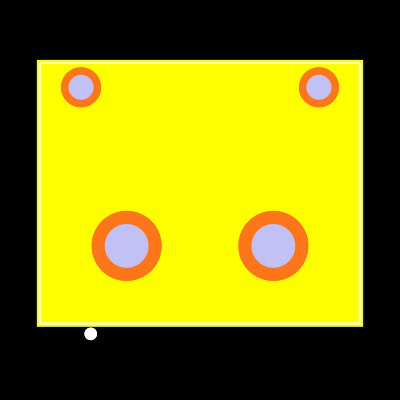

Footprint
No web preview
This Footprint is Available for

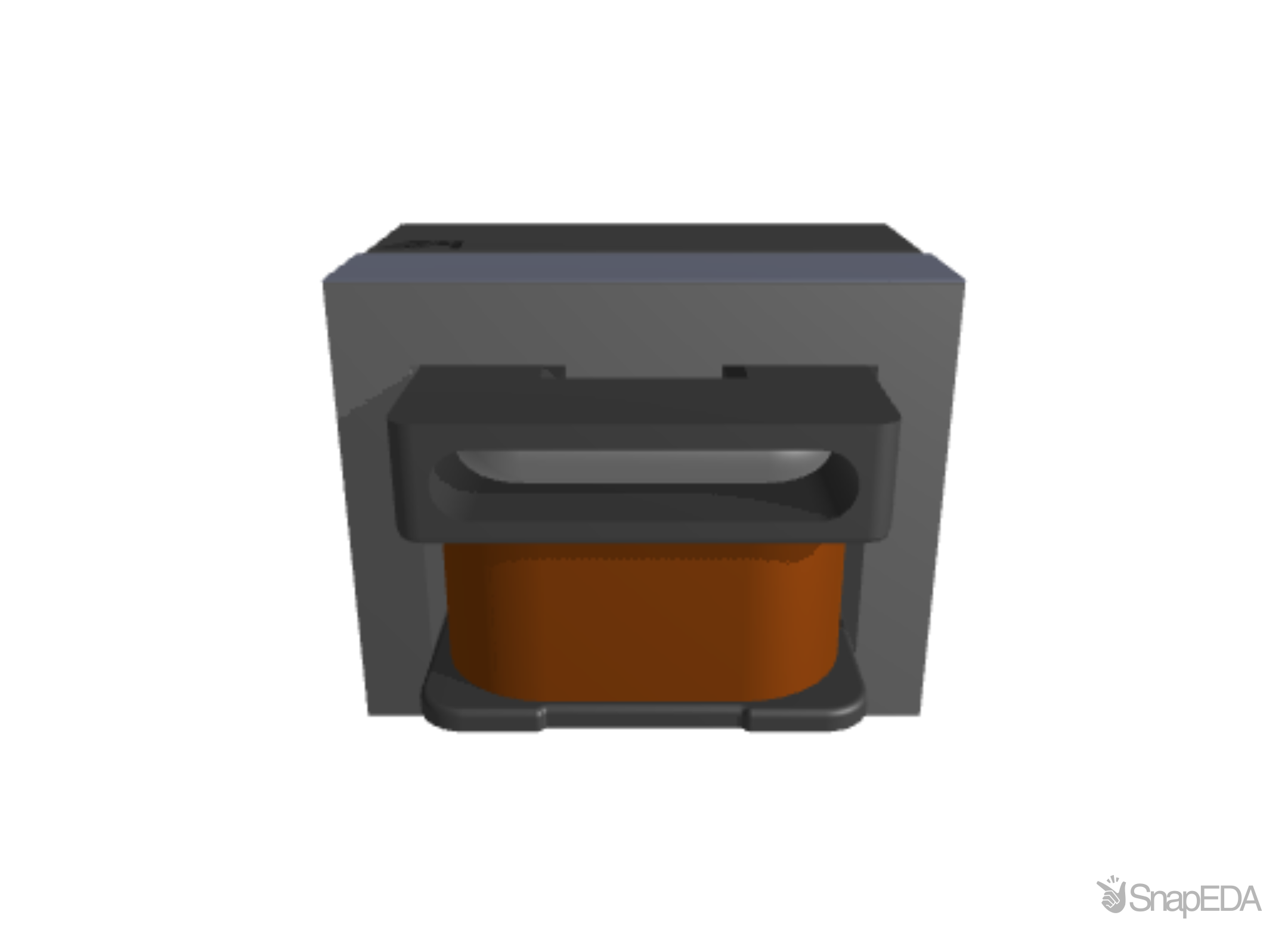

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7492550500
| Part Name | 7492550500 |
| Manufacturer | Wurth Elektronik |
| Product Series Size | EI187 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | Size EI187 THT; L = 400 mH; n = 1:500 ; ∫Udt = 30000 µVs; UT = 4000 V |
| Weight | 14.02 |
| Product Family | Switch Mode Power Transformer |
| Ro Hs Approval | Compliant |
| Rated Current (A) | 45 |
| Spq | 15 |
| Current Revision (A) | 1.1.0 |
| Packaging Type | Tube |
| Height | 17 mm |
| Reach Approval | Conform or declared |
| Width | 16.5 mm |
| Length | 20.3 mm |
| Product Unit | eiTac |
| Product Group Description | Power Magnetics |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 7492550500 by Wurth Elektronik from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
23
|
|
Visit Site | |
| Newark |
23
|
|
Visit Site | |
| RS UK |
25
|
1 x $5.46
|
Visit Site | |
| element14 Singapore |
23
|
|
Visit Site |
No issues have been reported for the 7492550500
