74980111211
SnapVerified
1 Port RJ45 Magjack Connector Surface Mount 10/100 Base-T, AutoMDIX
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74980111211 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

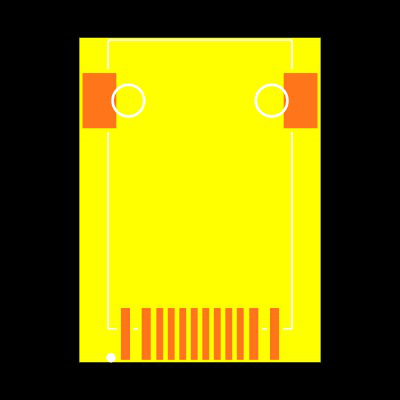

Footprint
No web preview
This Footprint is Available for

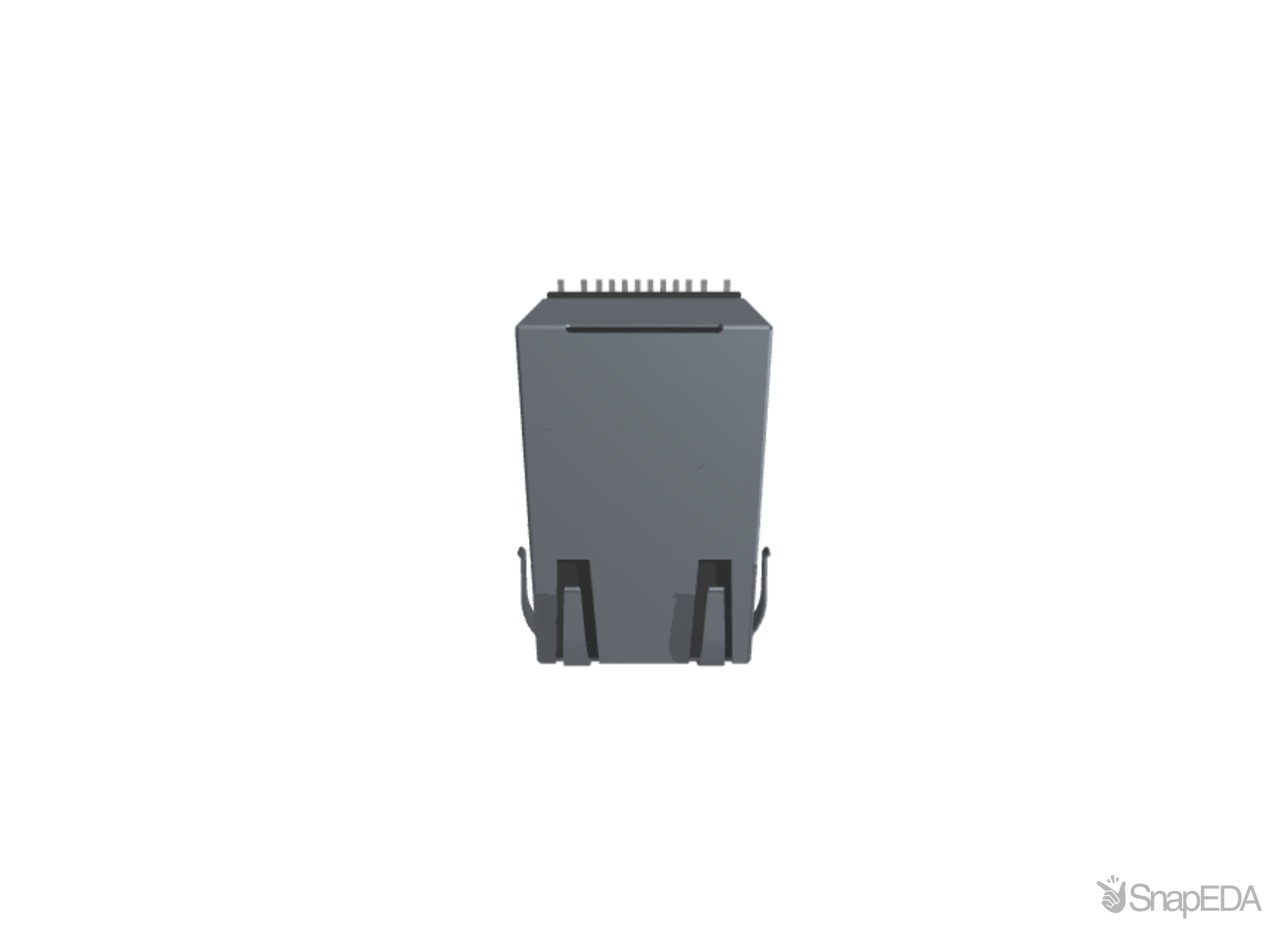

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74980111211
| Part Name | 74980111211 |
| Manufacturer | Wurth Electronics |
| Product Series Size | UP RJWE-09 LED NOPOE 100BT |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | 10/100BASE-TX, SMT, 1x1, Tab-up, with shield tabs, LED L: yellow, LED R: green, -40+85°C, for current & voltage mode PHYs |
| Product Family | Filtered Connectors |
| Weight | 6.92 |
| Spq | 75 |
| Current Revision (A) | 4.0.0 |
| Packaging Type | 13''Reel |
| Height | 13.61 mm |
| Width | 16.1 mm |
| Length | 25.4 mm |
| Product Unit | eiSos |
| Operating Temperature | -40 °C up to +85 °C |
| Product Group Description | Signal & Communications |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 74980111211
