7498210220A

Name: 7498210220A
Brand: Würth Elektronik Midcom

SnapVerified

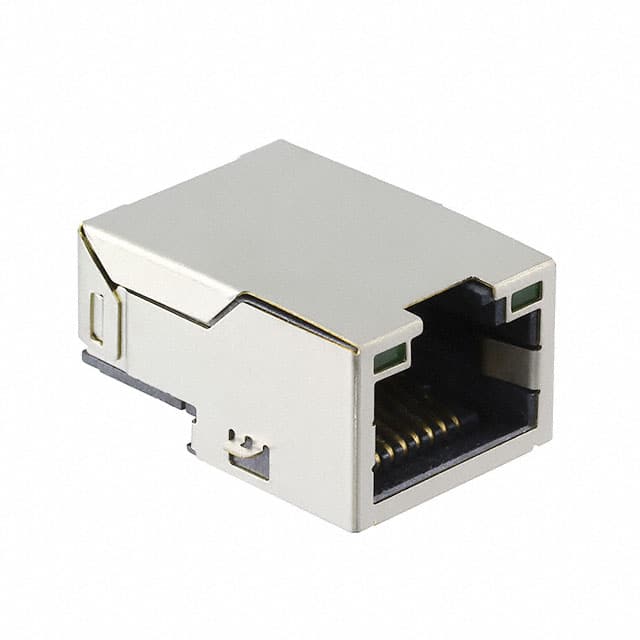

1 Port RJ45 Board Edge, Cutout; Surface Mount 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout
