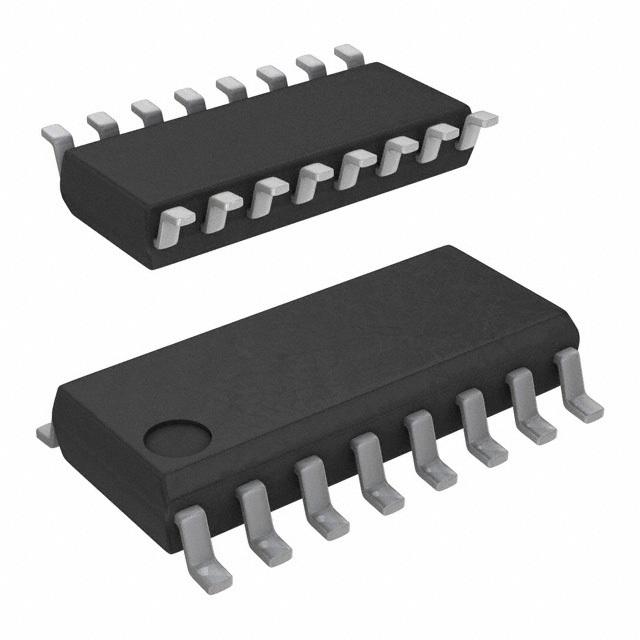

74AC11008D
4-ch, 2-input, 3-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74AC11008D by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

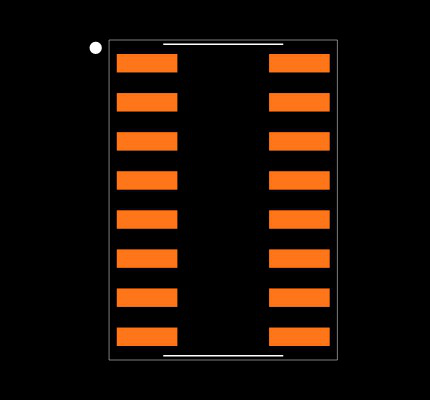

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74AC11008D
| Part Name | 74AC11008D |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 4 x 1.5 (mm) |
| Maximum Propagation Delay Time Maximum Cl | 10.2 ns @ 50 pF |
| Logic Family | AC |
| Width | 4 (mm) |
| Input Type | Differential |
| Maximum Low Level Output Current (A) | 24 (mA) |
| Maximum High Level Output Current (A) | -24 (mA) |
| Minimum Operating Supply Voltage (V) | 3 V |
| Output Type | Single Ended |
| Package Type | SOIC |
| Maximum Operating Temperature | +85 °C |
| Number Of Inputs Per Gate | 2 |
| Length | 10 (mm) |
| Number Of Elements | 4 |
| Pin Count | 16 |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Mounting Type | Surface Mount |
| Logic Function | AND |
| Height | 1.5 (mm) |
| Minimum Operating Temperature | -40 °C |
| Schmitt Trigger Input | No |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the 74AC11008D by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
30
|
120 x $2.50
|
Visit Site | |
| Arrow Europe |
200
|
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
5,558
|
|
Visit Site |
No issues have been reported for the 74AC11008D
If you experienced any issues with the symbol or footprint, please report it.
