74HC00D,653
74HC Series 6 V High-Speed Si-Gate CMOS Quad 2-Input NAND Gate - SOIC-14
Availability: In Stock
Package Type: SO14-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HC00D,653 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

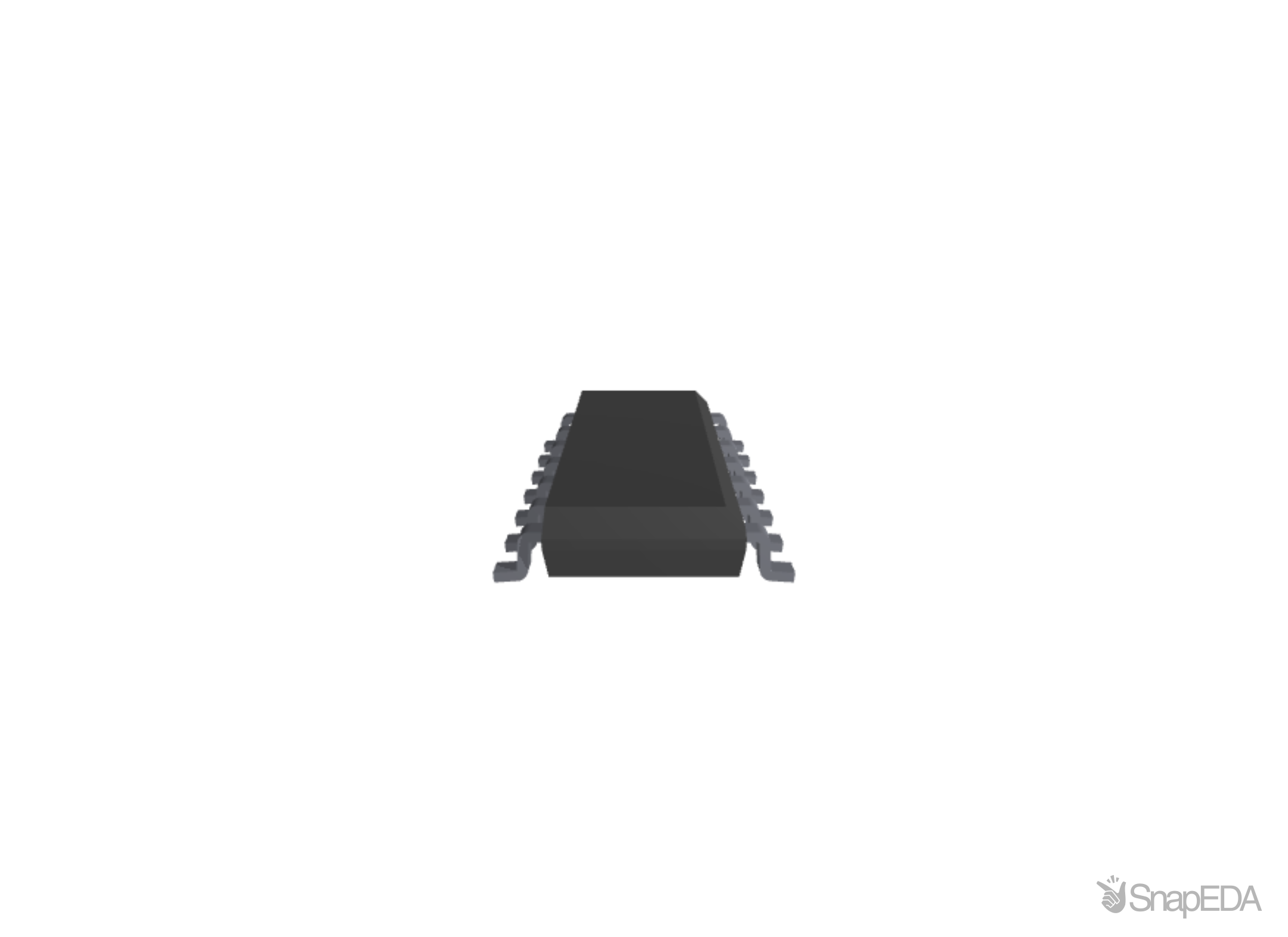

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HC00D,653
| Part Name | 74HC00D,653 |
| Manufacturer | Nexperia USA |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 14 |
| Maximum Low Level Output Current (A) | 5.2 (mA) |
| Dimensions | 8.75 x 4 x 1.45 (mm) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Number Of Inputs Per Gate | 2 |
| Logic Function | NAND |
| Maximum Propagation Delay Time Maximum Cl | 135 ns @ 50 pF |
| Minimum Operating Supply Voltage (V) | 2 V |
| Logic Family | 74HC |
| Height | 1.45 (mm) |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SO |
| Output Type | Single Ended |
| Input Type | CMOS |
| Mounting Type | Surface Mount |
| Number Of Elements | 4 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -5.2 (mA) |
Inventory for the 74HC00D,653 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
57,165
|
|
Visit Site | |
| Arrow Electronics |
107,500
|
|
Visit Site | |
| Verical |
52,500
|
|
Visit Site |
No issues have been reported for the 74HC00D,653
