74HC04D
IC Mos 74HC04/SO/74HC04D NXP SEMICONDUCTORS RoHS HC SO
Availability: In Stock
Package Type: SO14-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HC04D by Toshiba and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

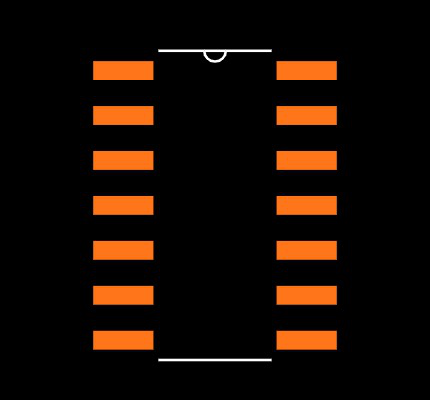

Footprint
No web preview
This Footprint is Available for

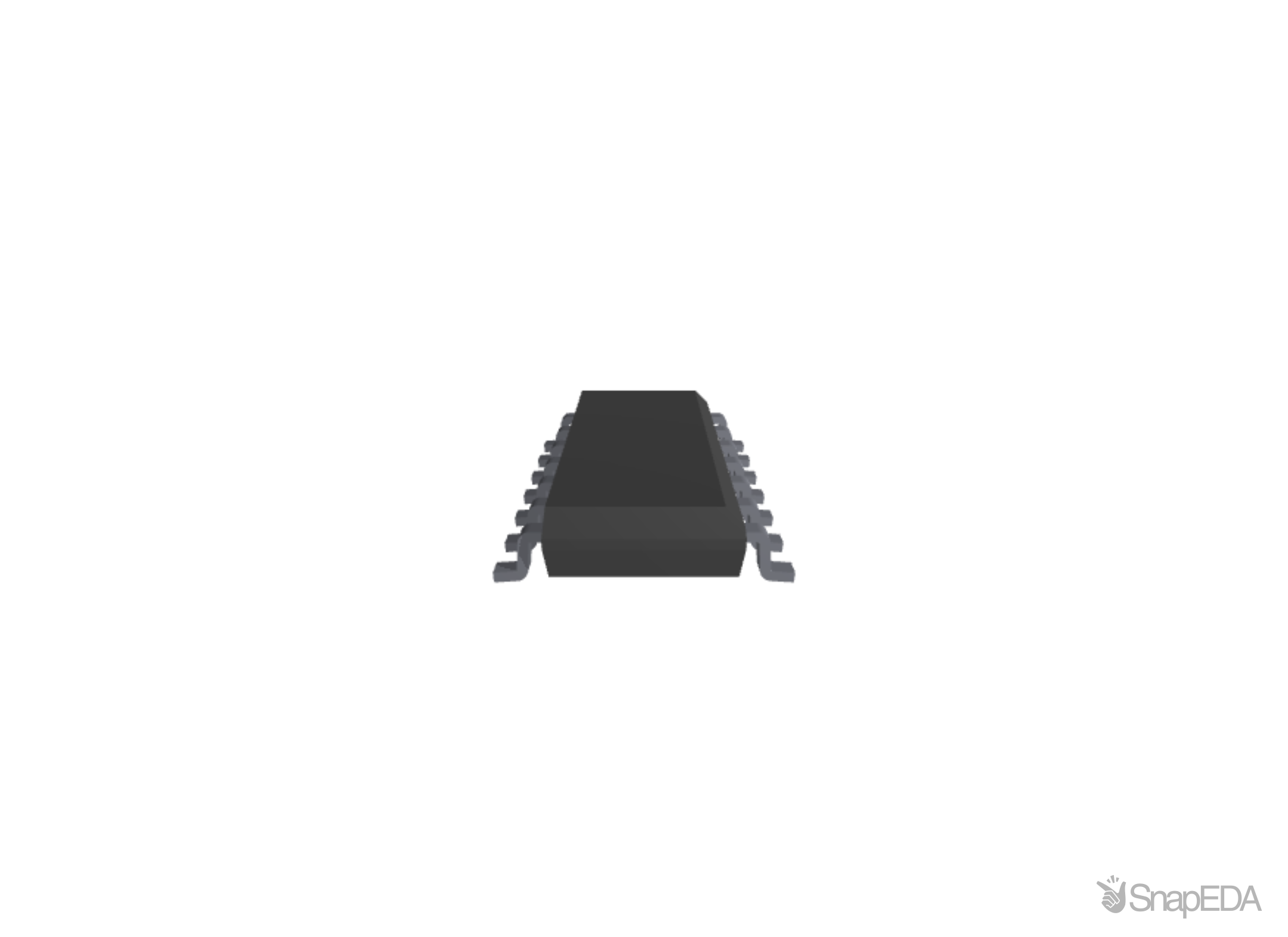

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HC04D
| Part Name | 74HC04D |
| Manufacturer | Toshiba |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 5.2 (mA) |
| Maximum High Level Output Current (A) | -5.2 (mA) |
| Dimensions | 8.95 x 3.9 x 1.38 (mm) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Logic Function | Inverter |
| Maximum Propagation Delay Time Maximum Cl | 130 ns @ 50 pF |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage (V) | 2 V |
| Output Type | Buffered |
| Height | 1.38 (mm) |
| Width | 3.9 (mm) |
| Length | 8.95 (mm) |
| Package Type | SOIC |
| Logic Family | 74HC |
| Input Type | CMOS |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 14 |
| Propagation Delay Test Condition | 50 (pF) |
| Number Of Elements Per Chip | 6 |
