74HC4050D

Name: 74HC4050D
Brand: Toshiba

Buffer, Non-Inverting 6 Element 1 Bit per Element - Output 16-SOIC

Availability: Out of Stock

CAD Models: Symbol and Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 74HC4050D by Toshiba and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

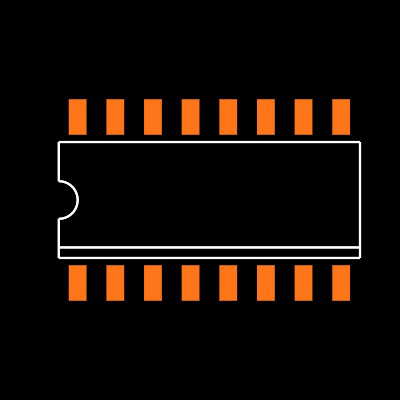

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 74HC4050D

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 74HC4050D

Part Name	74HC4050D
Manufacturer	Toshiba
RoHS	True
Life Cycle Status	End of Life
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Polarity	Non-Inverting
Maximum Low Level Output Current (A)	7.8 (mA)
Maximum High Level Output Current (A)	-7.8 (mA)
Maximum Operating Supply Voltage (V)	6 V
Minimum Operating Supply Voltage (V)	2 V
Maximum Propagation Delay Time Maximum Cl	145 ns @ 150 pF
Number Of Channels Per Chip	6
Logic Family	74HC
Package Type	SOIC
Output Type	CMOS
Ic Type	Hex Buffer IC
Mounting Type	Surface Mount
Pin Count	16
Propagation Delay Test Condition	150 (pF)
Dimensions	10.2 x 3.9 x 1.38 (mm)
