74HC4050D
Buffer, Non-Inverting 6 Element 1 Bit per Element - Output 16-SOIC
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HC4050D by Toshiba and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

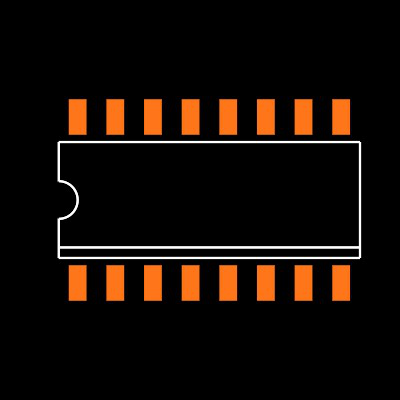

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HC4050D
| Part Name | 74HC4050D |
| Manufacturer | Toshiba |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 7.8 (mA) |
| Maximum High Level Output Current (A) | -7.8 (mA) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Number Of Channels Per Chip | 6 |
| Maximum Propagation Delay Time Maximum Cl | 145 ns @ 150 pF |
| Minimum Operating Supply Voltage (V) | 2 V |
| Logic Family | 74HC |
| Package Type | SOIC |
| Output Type | CMOS |
| Ic Type | Hex Buffer IC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Propagation Delay Test Condition | 150 (pF) |
| Dimensions | 10.2 x 3.9 x 1.38 (mm) |
Inventory for the 74HC4050D by Toshiba from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,525
|
|
Visit Site | |
| Arrow Electronics |
1,533
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Verical |
1,533
|
490 x $0.20
|
Visit Site |
No issues have been reported for the 74HC4050D
