74HCT04D,653
Inverter IC 6 Channel - 14-SO
Availability: In Stock
Package Type: SO14-14
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HCT04D,653 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

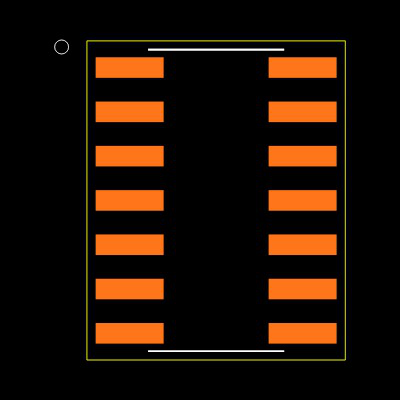

Footprint
No web preview
This Footprint is Available for

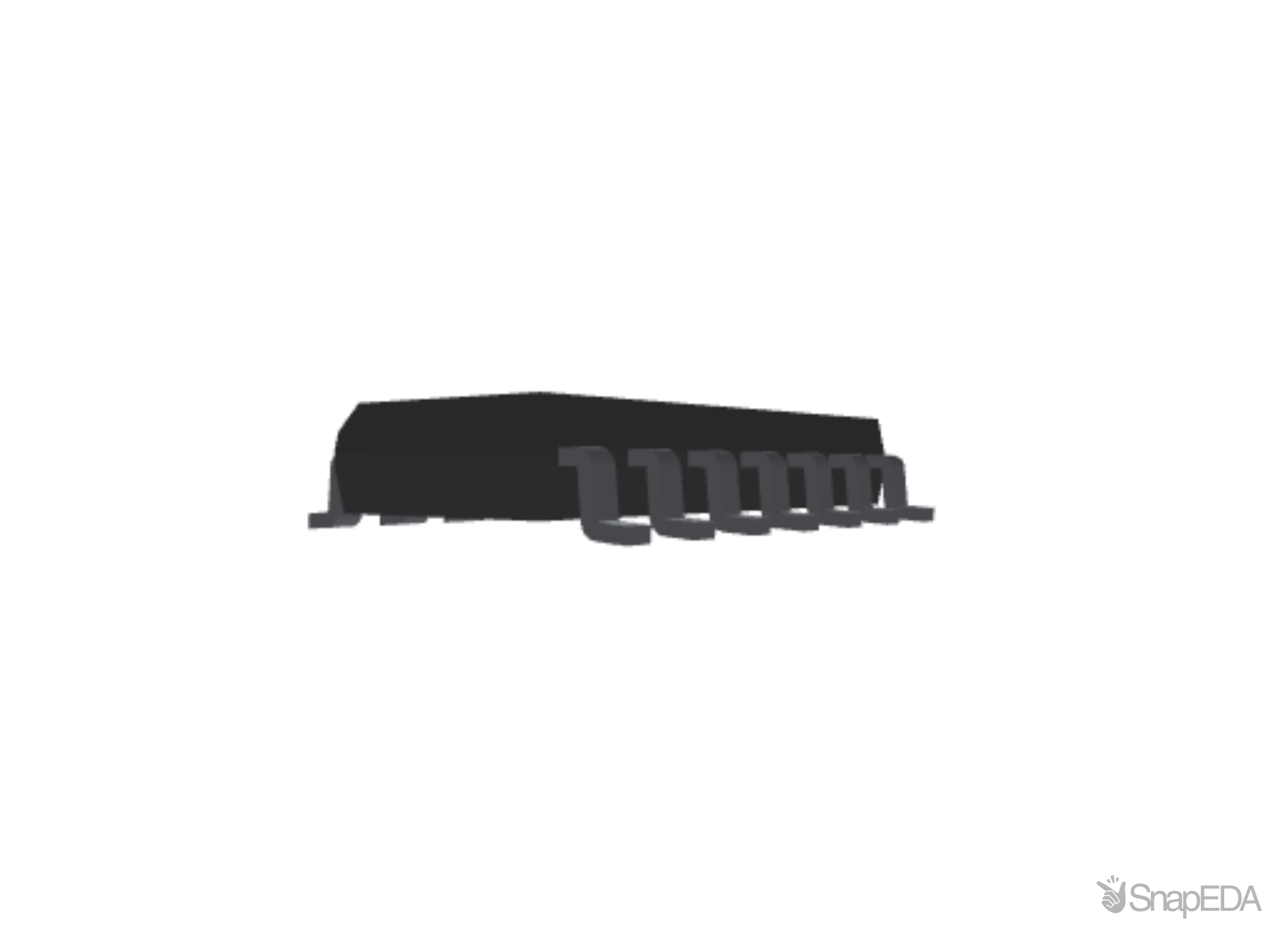

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HCT04D,653
| Part Name | 74HCT04D,653 |
| Manufacturer | Nexperia |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 5.2 (mA) |
| Dimensions | 8.75 x 4 x 1.45 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Maximum Propagation Delay Time @ Maximum Cl | 29 ns @ 50 pF |
| Propagation Delay Test Condition | 50 (pF) |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Logic Family | 74HCT |
| Height | 1.45 (mm) |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SO |
| Number Of Elements Per Chip | 6 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Input Type | TTL |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 14 |
| Output Type | Single Ended |
| Maximum High Level Output Current (A) | -4 (mA) |
Inventory for the 74HCT04D,653 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
24,330
|
775 x $0.39
|
Visit Site | |
| Arrow Electronics |
1,095
|
|
Visit Site | |
| Avnet Asia |
5,000
|
|
Visit Site | |
| Farnell UK |
744
|
|
Visit Site | |
| Newark |
744
|
1 x $0.48
|
Visit Site | |
| Schukat Electronic |
4,700
|
|
Visit Site | |
| TME |
3,952
|
|
Visit Site | |
| Verical |
13,001
|
|
Visit Site | |
| element14 Singapore |
734
|
|
Visit Site |
No issues have been reported for the 74HCT04D,653
