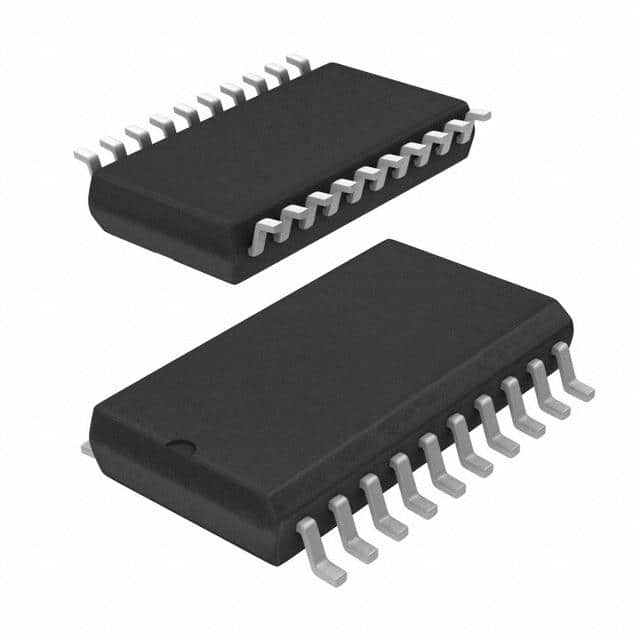

74HCT374D,652
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SO Bulk
Availability: In Stock
Package Type: SO20-20
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HCT374D,652 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HCT374D,652
| Part Name | 74HCT374D,652 |
| Manufacturer | Nexperia |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Non-Inverting |
| Output Type | 3 State |
| Dimensions | 13 x 7.6 x 2.45 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Maximum Propagation Delay Time @ Maximum Cl | 32 ns @ 4.5 V |
| Logic Function | D Type |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Logic Family | HCT |
| Height | 2.45 (mm) |
| Width | 7.6 (mm) |
| Length | 13 (mm) |
| Package Type | SOIC |
| Number Of Elements Per Chip | 8 |
| Input Type | Single Ended |
| Mounting Type | Surface Mount |
| Triggering Type | Positive Edge |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 20 |
| Propagation Delay Test Condition | 50 (pF) |
| Output Signal Type | Single Ended |
Inventory for the 74HCT374D,652 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,340
|
429 x $0.70
|
Visit Site | |
| Verical |
3,198
|
|
Visit Site |
No issues have been reported for the 74HCT374D,652
