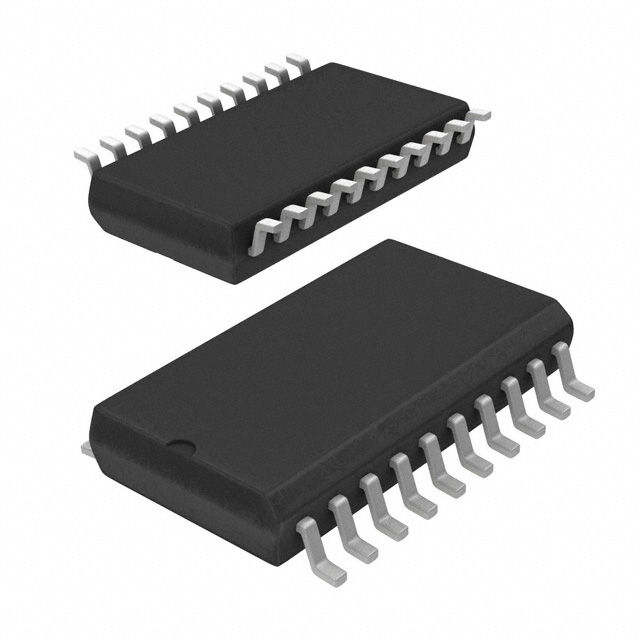

74HCT541D,652
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SO
Availability: In Stock
Package Type: SO20-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74HCT541D,652 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

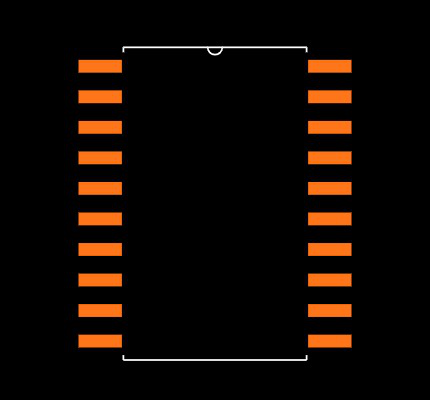

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74HCT541D,652
| Part Name | 74HCT541D,652 |
| Manufacturer | Nexperia USA |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 6 (mA) |
| Dimensions | 13 x 7.6 x 2.45 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Number Of Channels Per Chip | 8 |
| Maximum Propagation Delay Time Maximum Cl | 28 ns @ 4.5 V |
| Logic Function | Buffer, Line Driver |
| Logic Family | HCT |
| Package Type | SOIC |
| Output Type | 3 State |
| Input Type | Single Ended |
| Ic Type | Buffer & Line Driver IC |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Pin Count | 20 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -6 (mA) |
