74LCX16244MTDX
Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-TSSOP
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74LCX16244MTDX by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

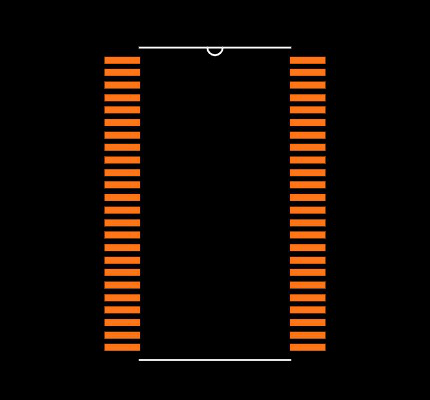

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74LCX16244MTDX
| Part Name | 74LCX16244MTDX |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 24 (mA) |
| Dimensions | 12.5 x 6.1 x 0.9 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Maximum Propagation Delay Time @ Maximum Cl | 5.2 (ns) |
| Logic Function | Buffer, Line Driver |
| Number Of Channels Per Chip | 16 |
| Logic Family | LCX |
| Package Type | TSSOP |
| Output Type | 3 State |
| Ic Type | Buffer & Line Driver IC |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 2 V |
| Pin Count | 48 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -24 (mA) |
No issues have been reported for the 74LCX16244MTDX
If you experienced any issues with the symbol or footprint, please report it.
