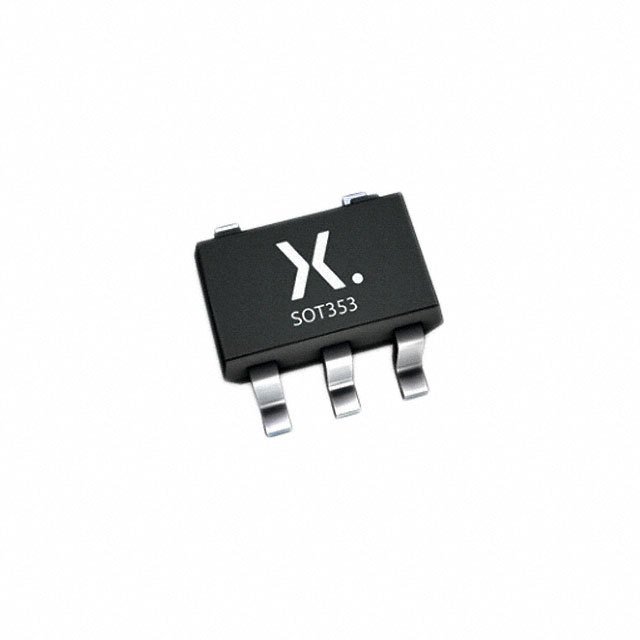

74LVC1G14GW,125

Name: 74LVC1G14GW,125
Brand: Nexperia

Inverter IC 1 Channel Schmitt Trigger 5-TSSOP

Availability: Out of Stock

Package Type: TSSOP5-5

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 74LVC1G14GW,125 by Nexperia and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

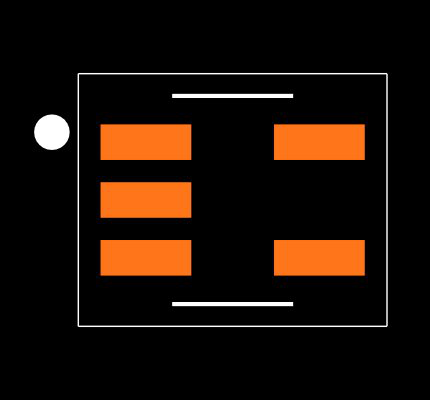

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

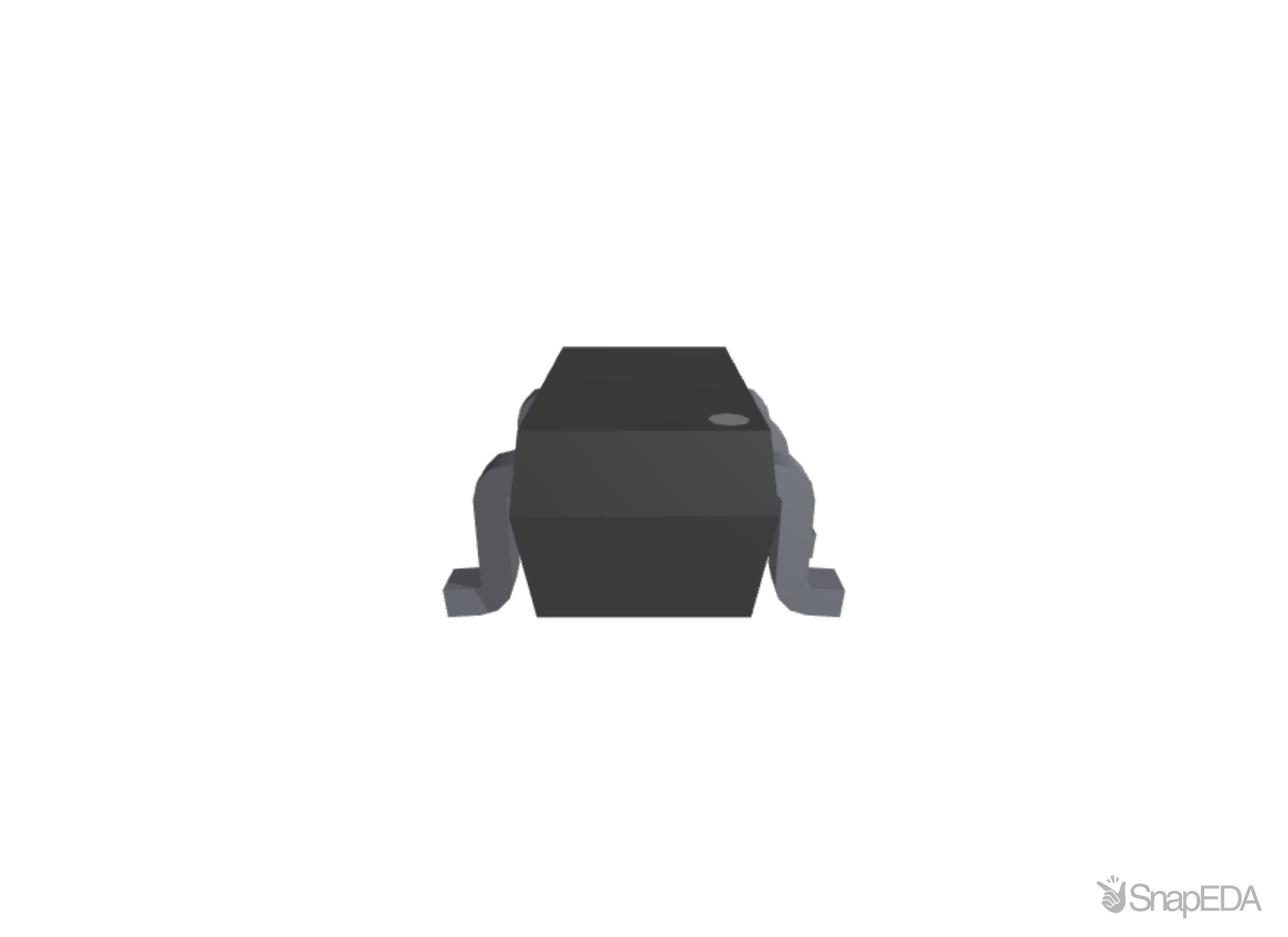

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 74LVC1G14GW,125

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 74LVC1G14GW,125

Part Name	74LVC1G14GW,125
Manufacturer	Nexperia USA
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Pin Count	5
Maximum Low Level Output Current (A)	32 (mA)
Dimensions	2.25 x 1.35 x 1 (mm)
Maximum Operating Supply Voltage (V)	5.5 V
Mounting Type	Surface Mount
Maximum Propagation Delay Time Maximum Cl	2.2 ns @ 5 V, 3 ns @ 3.3 V, 3.2 ns @ 2.7 V
Logic Function	Inverter
Logic Family	LVC
Height	1 (mm)
Width	1.35 (mm)
Length	2.25 (mm)
Package Type	TSSOP
Number Of Elements Per Chip	1
Input Type	Schmitt Trigger
Schmitt Trigger Input	Yes
Minimum Operating Supply Voltage (V)	1.65 V
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Propagation Delay Test Condition	50 (pF)
Maximum High Level Output Current (A)	-32 (mA)

We could not find inventory or pricing across major distributors for the 74LVC1G14GW,125 by Nexperia.
