74VHC123AM
Monostable Multivibrator 8.1 ns 16-TSSOP
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74VHC123AM by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

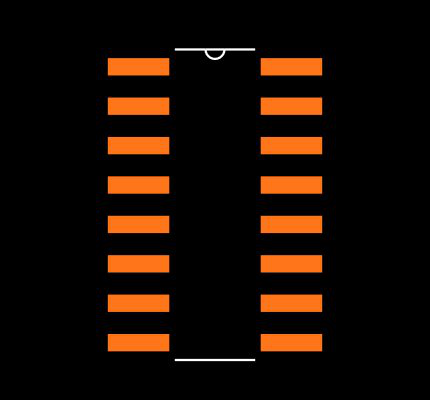

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74VHC123AM
| Part Name | 74VHC123AM |
| Manufacturer | ON |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 16 |
| Maximum Low Level Output Current (A) | 8 (mA) |
| Maximum High Level Output Current (A) | -8 (mA) |
| Maximum Operating Supply Voltage (V) | 7 V |
| Minimum Operating Supply Voltage (V) | -0.5 V |
| Maximum Propagation Delay Time Maximum Cl | 29.5 ns@ 50 pF |
| Logic Function | Monostable Multivibrator |
| Logic Family | 74VHC |
| Height | 0.9 (mm) |
| Width | 4.4 (mm) |
| Length | 5 (mm) |
| Package Type | TSSOP |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -45 °C |
| Minimum Pulse Width | 90 μs |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Maximum Quiescent Current (A) | 40 (µA) |
| Propagation Delay Test Condition | 50 (pF) |
| Dimensions | 5 x 4.4 x 0.9 (mm) |
Inventory for the 74VHC123AM by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
19
|
25 x $1.28
|
Visit Site | |
| TME |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 74VHC123AM
