74VHC123AMX
Monostable Multivibrator 8.1 ns 16-SOIC
Availability: Out of Stock
Package Type: SOIC-16
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 74VHC123AMX by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

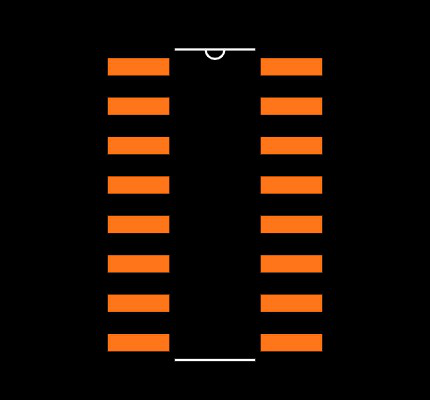

Footprint
No web preview
This Footprint is Available for

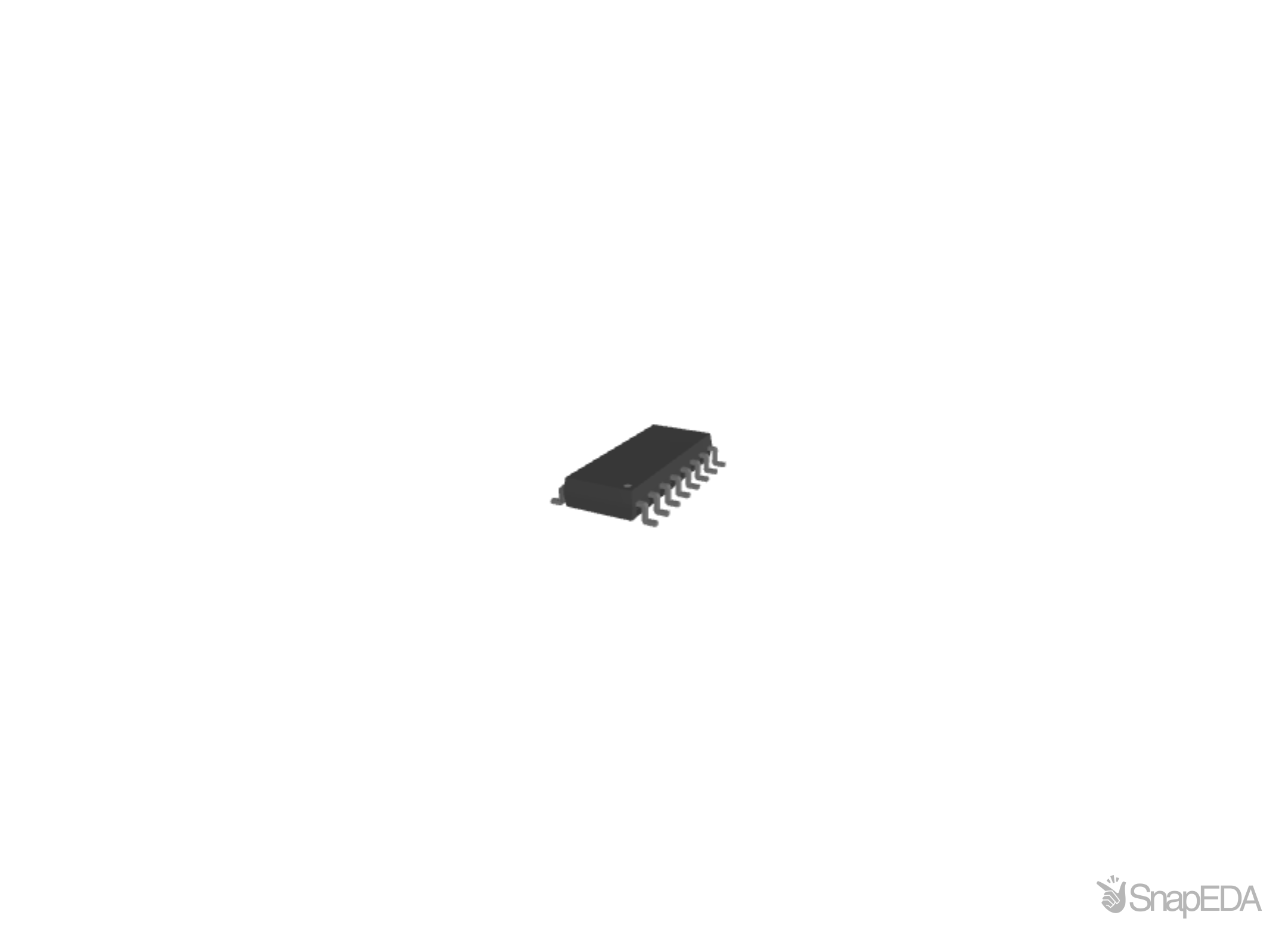

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 74VHC123AMX
| Part Name | 74VHC123AMX |
| Manufacturer | ON |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 16 |
| Maximum Low Level Output Current (A) | 25 (mA) |
| Maximum High Level Output Current (A) | -25 (mA) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Operating Supply Voltage (V) | 2 V |
| Maximum Propagation Delay Time Maximum Cl | 29.5 (ns) |
| Logic Function | Monostable Multivibrator |
| Logic Family | 74VHC |
| Height | 1.45 (mm) |
| Width | 3.9 (mm) |
| Length | 9.9 (mm) |
| Package Type | SOIC |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Minimum Pulse Width | 90 μs |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Maximum Quiescent Current (A) | 0.04 (mA) |
| Propagation Delay Test Condition | 50 (pF) |
| Dimensions | 9.9 x 3.9 x 1.45 (mm) |
No issues have been reported for the 74VHC123AMX
