750313355
Power Over Ethernet (PoE) For Configurable (For DC/DC) SMPS Transformer 1500Vrms Isolation Surface Mount
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 750313355 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

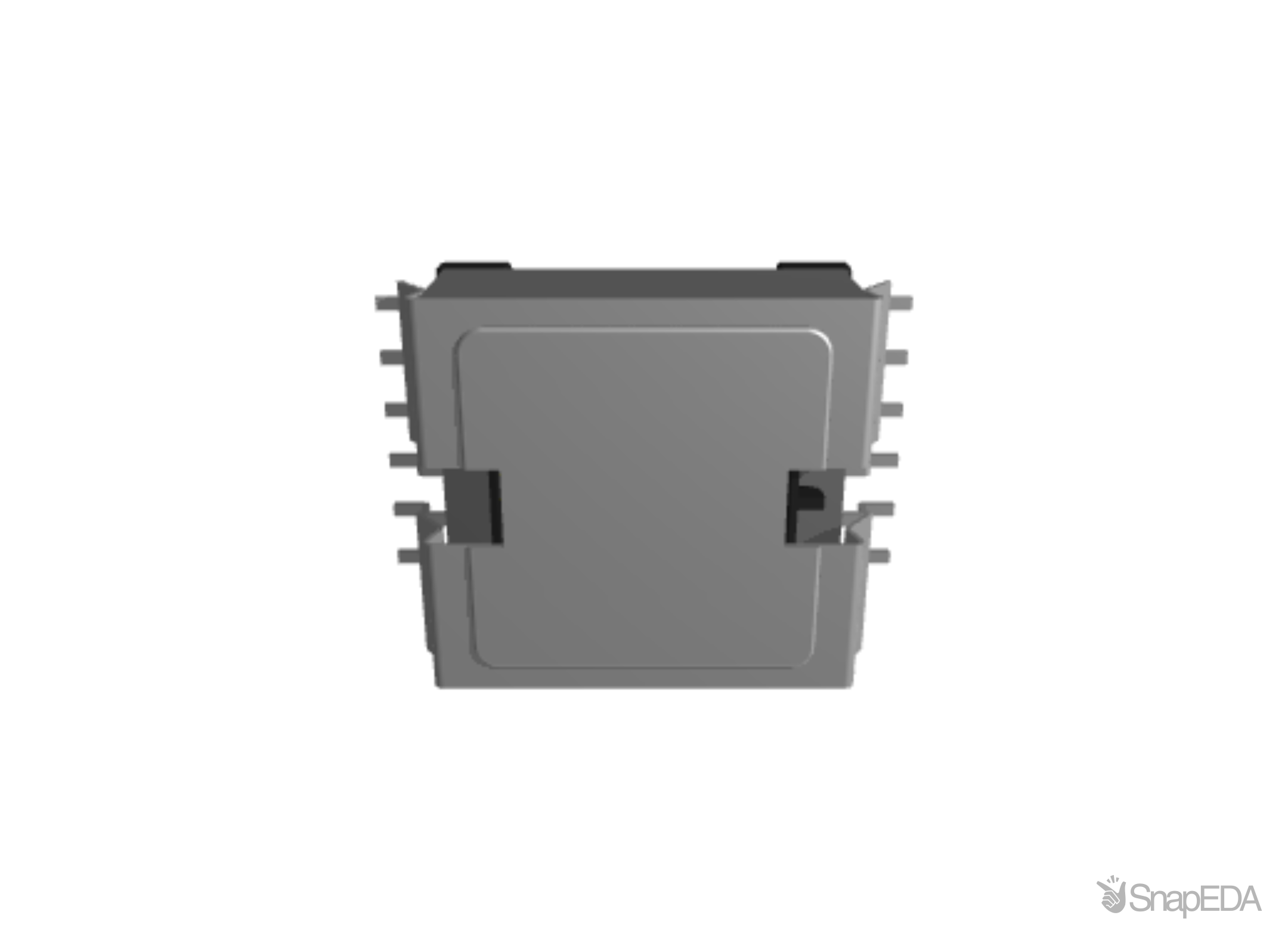

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the 750313355
| Part Name | 750313355 |
| Manufacturer | Wurth Electronics Midcom |
| Product Series Size | EFD20 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | EFD20 SMT; Ui = 36-72V; Uo1 = 12V/5A; f = 250kHz |
| Product Family | Switch Mode Power Transformer |
| Weight | 14.2424 |
| Ro Hs Approval | Compliant |
| Spq | 110 |
| Current Revision (A) | 4.2.0 |
| Packaging Type | 13'' Plastic Reel |
| Height | 11.43 mm |
| Reach Approval | (EC)1907/2006 |
| Width | 29.08 mm |
| Length | 23.11 mm |
| Product Unit | eiTac |
| Product Group Description | Power Magnetics |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 750313355
If you experienced any issues with the symbol or footprint, please report it.
