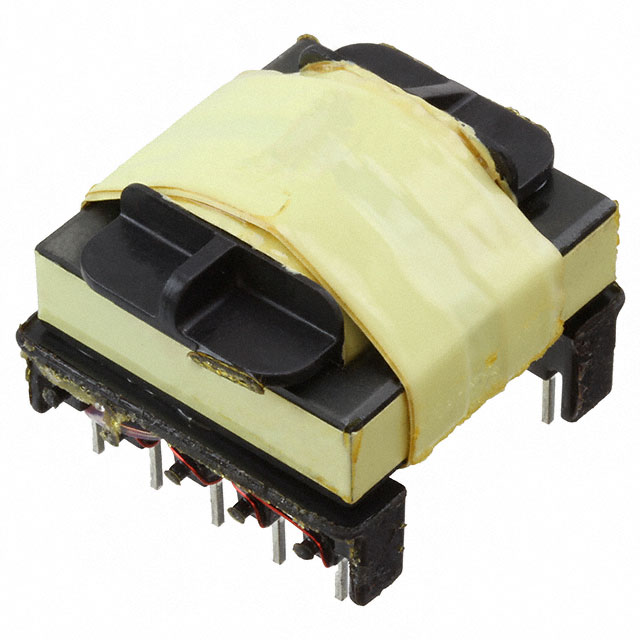

750813550
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 3000Vrms Isolation 55 ~ 85kHz Through Hole
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 750813550 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

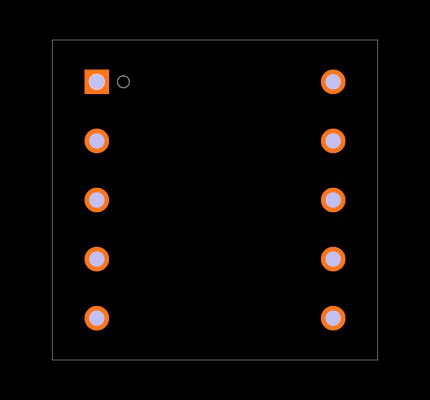

Footprint
No web preview
This Footprint is Available for

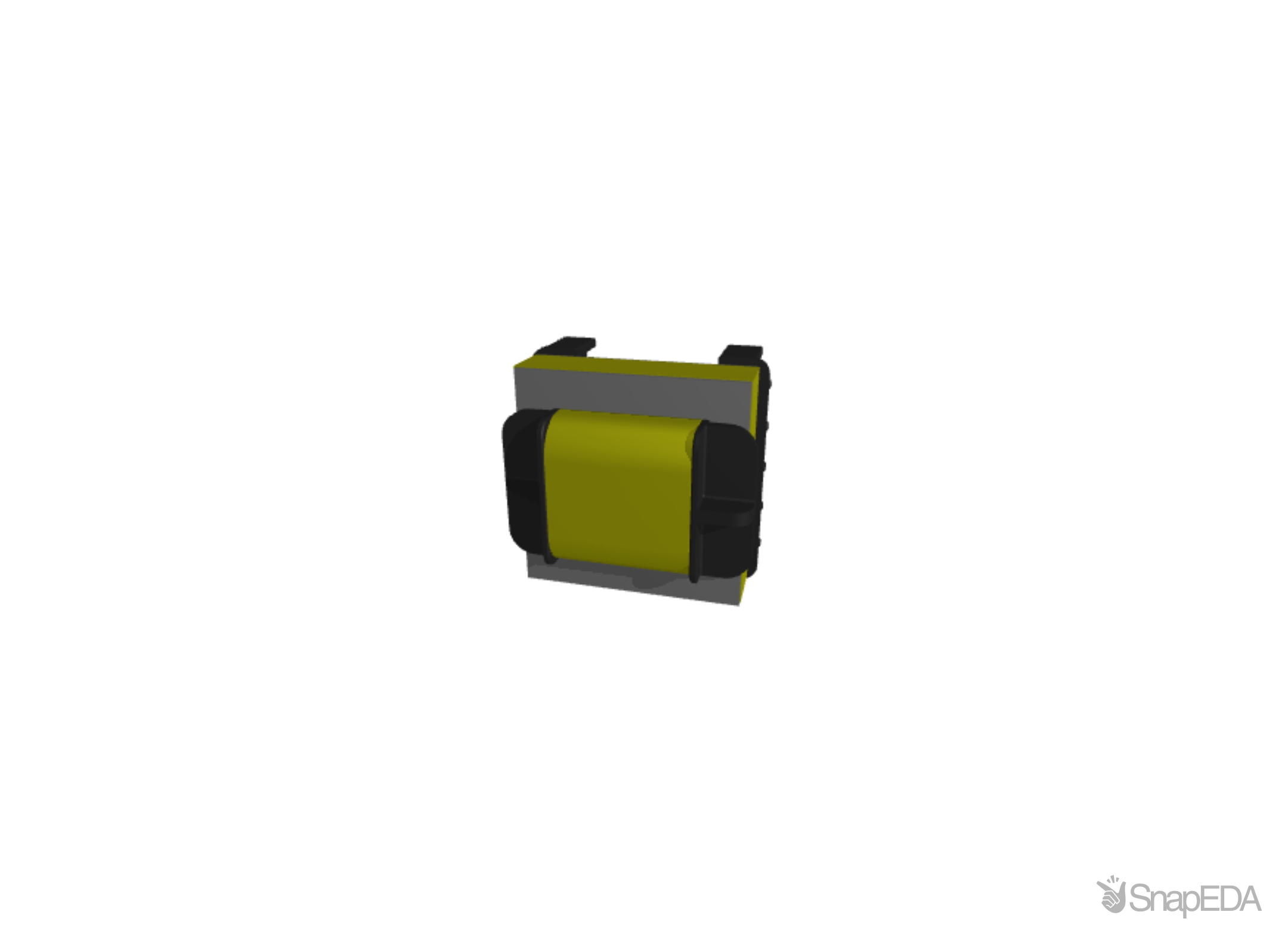

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 750813550
| Part Name | 750813550 |
| Manufacturer | Wurth Electronics Midcom |
| Product Series Size | EE25/13/7 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | EE25/13/7(EF25); Ui = 120-191V; Uo1 = 50V/0.34A; Uo2 = 12.5V/0.08A; f = 55-85kHz |
| Product Family | Switch Mode Power Transformer |
| Weight | 0.0 |
| Spq | 16 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | Tray |
| Height | 22.86 mm |
| Width | 29.21 mm |
| Length | 28.58 mm |
| Product Unit | eiTac |
| Product Group Description | Power Magnetics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 750813550
