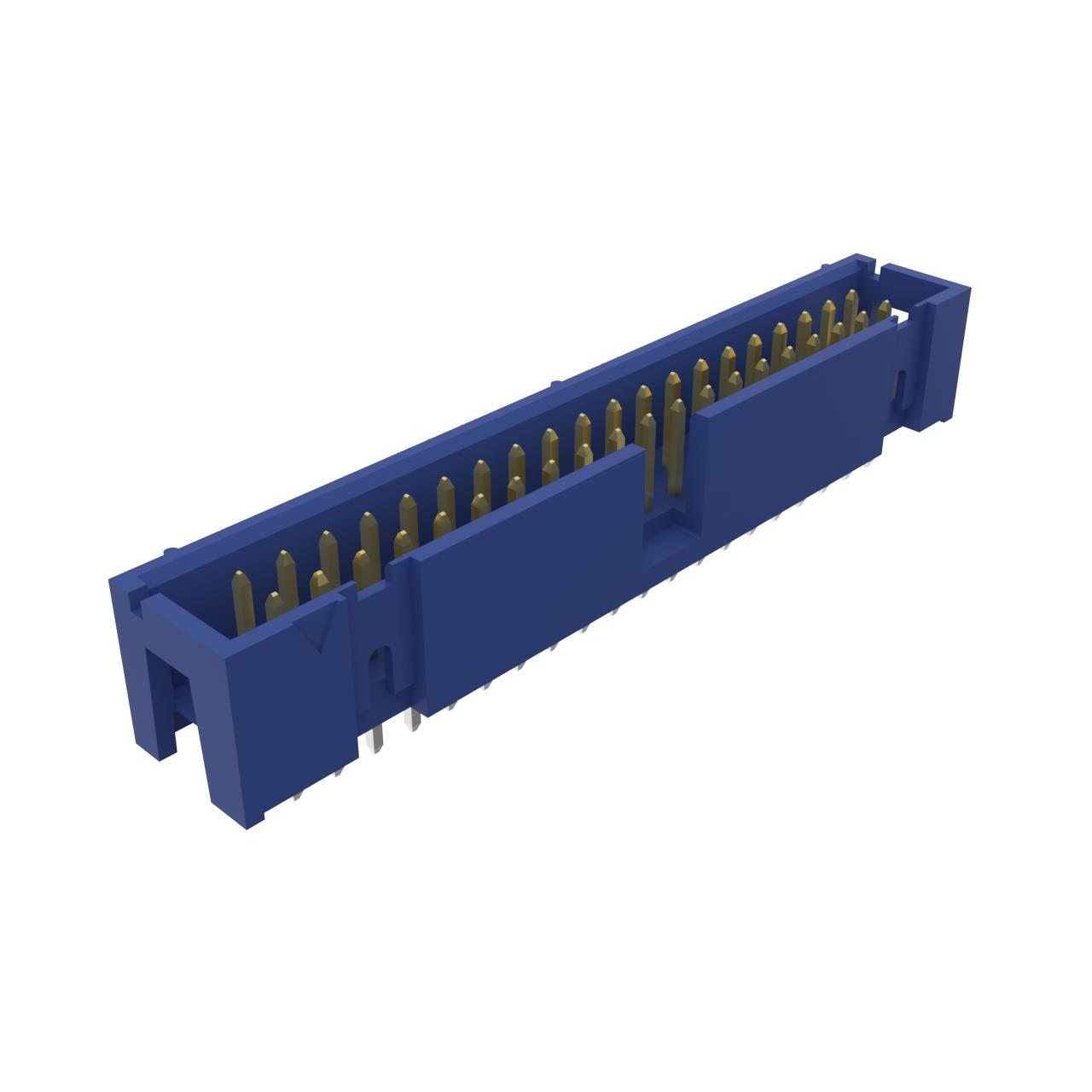

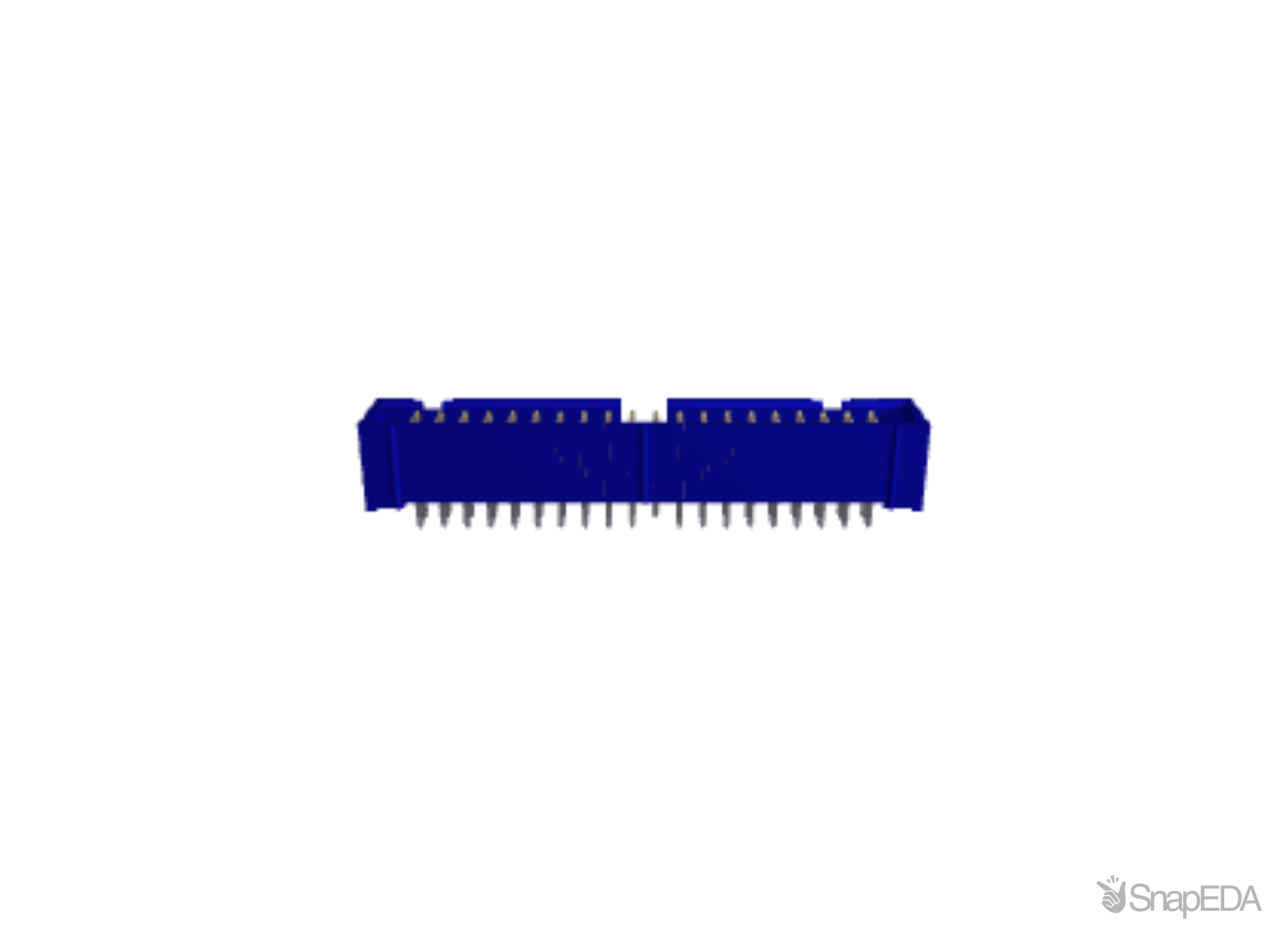

Quickie® Shrouded Low Profile Header, Wire To Board, Through Hole, Vertical, Double Row, Polarized, 40 Positions, 2.54mm (0.100in) Pitch
Specifications for the 75869-318LF
|Manufacturer||Amphenol ICC (FCI)|
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
