770421-1
Universal MATE-N-LOK 1 Position Detent Lock Free Hanging Receptacle Housing
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 770421-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

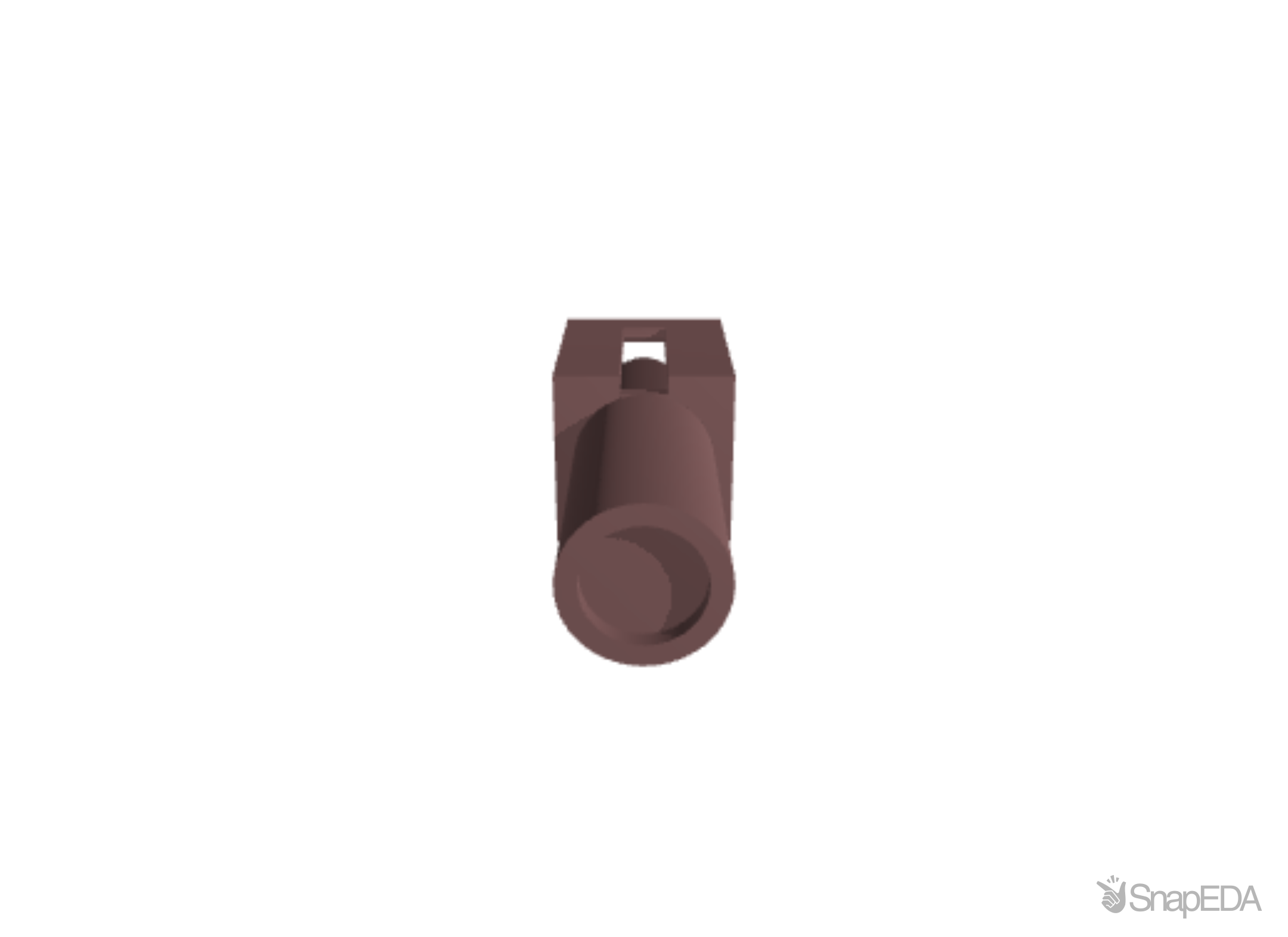

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 770421-1
| Part Name | 770421-1 |
| Manufacturer | TE Connectivity / AMP |
| Circuit Application | Power & Signal |
| Housing Material | Nylon GF |
| Width | .3 |
| Operating Voltage (V) | 600 |
| For Use With | Standard Universal MATE-N-LOK Connectors |
| Height | 1.08 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| VDE Tested | Yes |
| TE Internal Number | 770421-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Wire |
| Housing Type | Receptacle |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Sealable | No |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Agency/Standard | UL |
| Length | .3 |
| Number of Positions | 1 |
| CSA Rating | Certified |
| RoHS | True |
| Number of Rows | 1 |
| Product Type | Housing |
| Assembly Integration Feature | Without |
| UL Flammability Rating | UL 94V-2 |
| Multiple Contact Types | Without |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 770421-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
11,040
|
|
Visit Site |
